During horizontal directional drilling (HDD), one of the hidden threats is the entanglement of foreign objects on the drill string and tool. This can lead to equipment damage, emergency shutdowns, and significant repair costs. It is important to know which objects most often cause entanglement and how to timely detect obstacles on the drilling path.
What Can Entangle on the Drill String
- Communication cables and electrical wires laid in the ground without sufficient depth of protection.
- Steel cables, reinforcement bars, and remnants of construction scrap metal.
- Broken utility lines left in the soil after dismantling.
- Large roots of trees or shrubs obstructing the string movement.
- Fragments of old plastic and metal pipelines
Signs That the Drilling Tool Encountered an Obstacle
- Sudden increase in load on rods or torque.
- Appearance of vibrations and abnormal noises.
- Pressure spikes in the drilling fluid circulation system.
- Slowing of drilling speed without visible reasons.
- Deviations of the trajectory and unstable behavior of the drill string underground.
How to Timely Detect Foreign Objects
The main rule is comprehensive preparation for drilling. Before starting work, it is necessary to use ground-penetrating radar, cable locators, and utility maps. During drilling, torque, pressure, and axial load should be monitored in real time. Additional control is provided by locating systems and trajectory monitoring tools
What to Do in Case of Entanglement
If the string catches a cable or wire rope, do not force the advance. Stop the rig, switch the tool to reverse rotation, and carefully bring it to the surface. After retrieval, inspect the drilling head, replace damaged components, and remove the obstruction source.
Prevention and Safety
- Survey the drilling route before starting using ground-penetrating radar.
- Check updated utility maps and coordinate with municipal services.
- Use locating systems and sensors to monitor drilling parameters.
- Train personnel to respond promptly to early signs of entanglement.
Visual Examples

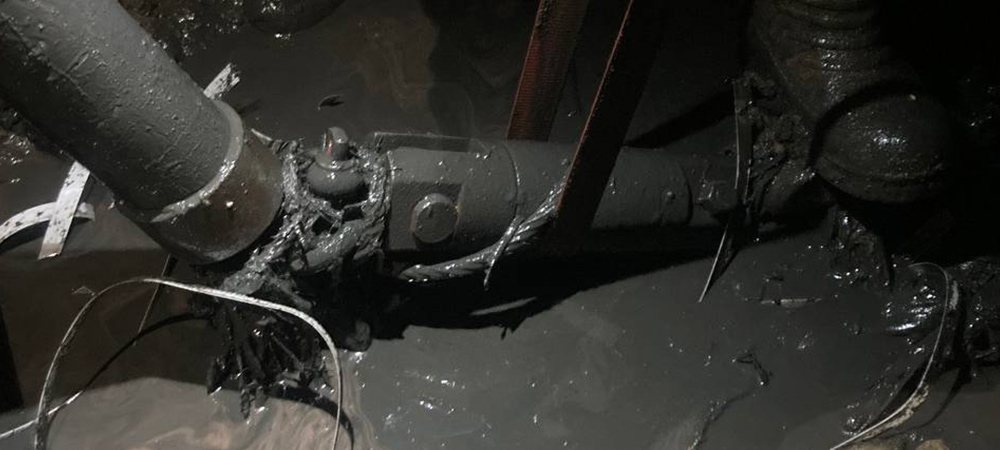

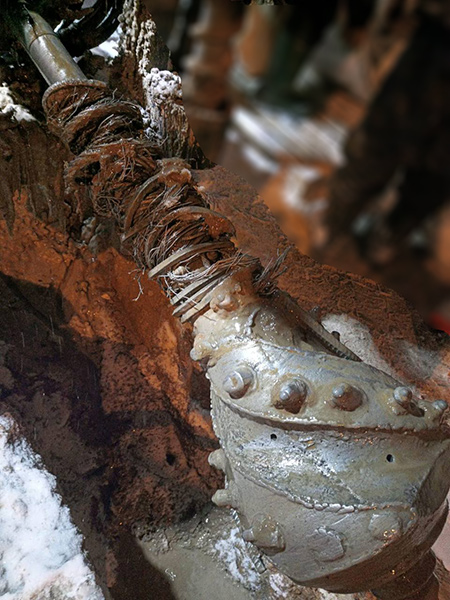

For clarity, we provide several images of critical entanglements on drilling tools. These photos show how cables, wires, or metallic objects can block string movement and cause accidents. Studying such cases helps specialists recognize the problem at early stages more quickly.
Conclusion
Cable and wire entanglement on the drill string is one of the key risks during HDD. Proper preparation, use of ground-penetrating radar and locating systems, as well as careful monitoring of drilling parameters, reduce downtime risks and extend equipment service life.
