When replacing critical components in HDD mud pumps, proper cylinder selection is essential for ensuring long-term performance. In the case of a Robbins HDD pump, the challenge often lies in identifying the correct model, especially when the original nameplate is missing or unreadable. This case illustrates how the right cylinder was selected using measurements and photographic analysis.
Identifying the Pump Model
The first step in selecting a cylinder is to identify the mud pump model. If the nameplate is absent, the process relies on visual inspection and comparison with reference materials. By examining photographs of the pump body and internal components, technicians can often narrow down the possible models.
Measurements as Key Evidence

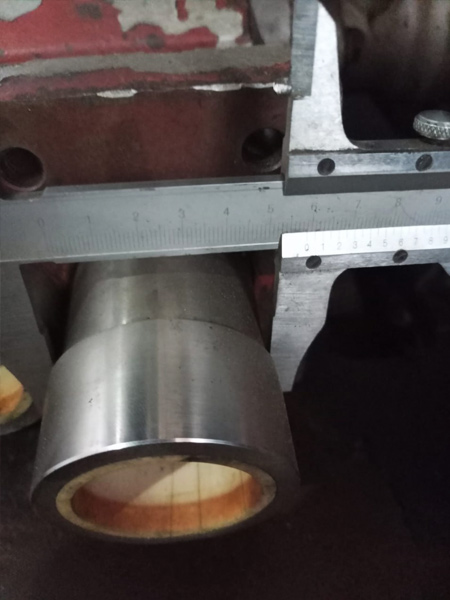

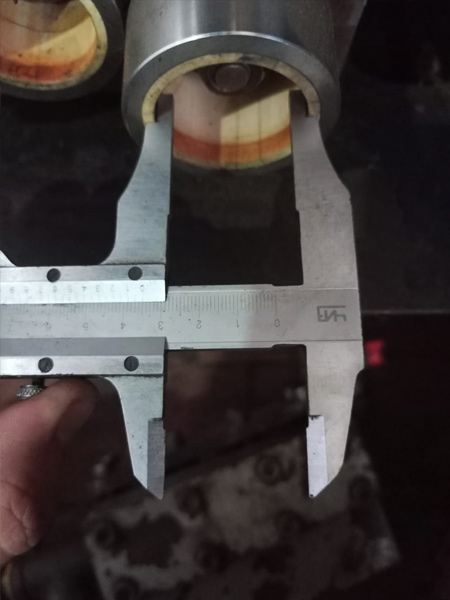

In this case, the spare part was measured directly on the disassembled mud pump. Dimensions of both the inner and outer surfaces were recorded and compared with available stock items in the warehouse. This data-driven approach allowed the team to match the required cylinder with confidence, even in the absence of identification tags.
Sealing Options
Along with the cylinder, suitable sealing elements were proposed. Available seals from stock were offered as compatible solutions to ensure proper fit and reliable operation. Providing several sealing options allowed the customer to select the best balance between cost, durability, and availability.
Conclusion
Selecting a replacement cylinder for a Robbins HDD mud pump requires a combination of technical expertise and practical analysis. When the nameplate is missing, photographs and precise measurements become the primary tools for accurate identification. In this case, the process led to the correct cylinder match and the supply of sealing elements from stock, ensuring the pump was quickly restored to full functionality.
