Fluid Pump – FMC (JT) Fluid End Begins with S/N: 2W0856
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

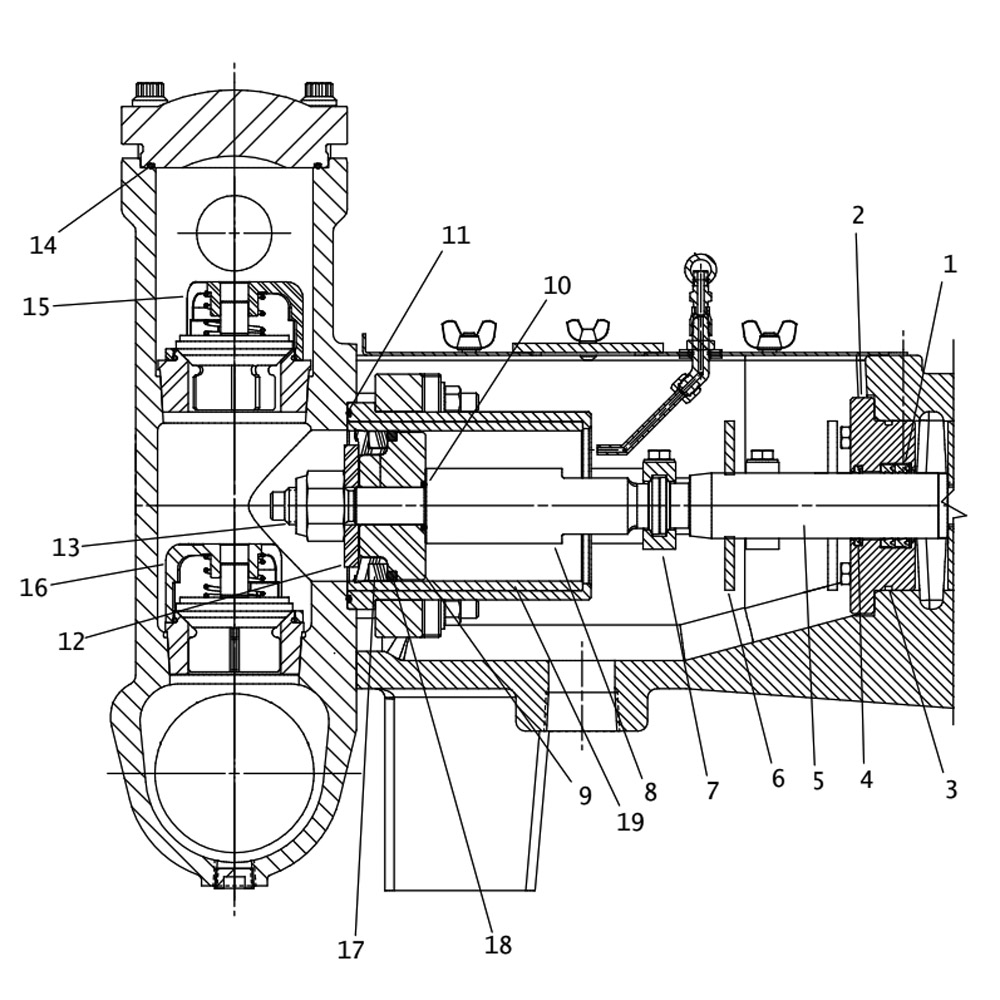

| REF. NO. | PART NO. | DESCRIPTION | QTY. | REMARKS |
|---|---|---|---|---|
| 499-450 | VALVE KIT (M14) | INCLUDES REF NO. 14, 15 AND 16 | ||
| 191-214 | PISTON / CYL. REPLACEMENT KIT | INCLUDES REF NO. 10, 11, 13, 17, 18 AND 19 | ||
| 191-215 | PISTON REPLACEMENT KIT | INCLUDES REF NO. 10, 11, 17 AND 18 | ||
| 1. | 157-275 | PLUNGER ROD SEAL (U-CUP) | 3 | |
| 2. | 499-457 | PLUNGER ROD SEAL HOUSING | 3 | |
| 3. | 157-302 | O-RING (2-244) | 3 | |
| 4. | 157-274 | PLUNGER ROD SEAL (SCRAPER) | 3 | |
| 5. | 499-456 | CROSSHEAD | 3 | |
| 6. | 499-458 | DEFLECTOR SHIELD | 3 | |
| 7. | 499-455 | PLUNGER CLAMP | 3 | |
| 8. | 499-454 | PISTON ROD | 3 | |
| 9. | 499-452 | PISTON HOLDER | 3 | |
| 10. | 157-069 | O-RING (215 D90) | 3 | |
| 11. | 157-269 | O-RING (-249 D90) | 3 | |
| 12. | 499-453 | PISTON RETAINER | 3 | |
| 13. | 107-794 | LOCKNUT (1″ NC) | 3 | REPLACE WITH NEW WHEN REMOVED. TORQUE TO 250 FT LBS. |
| 14. | N/A | O-RING (-245 D70) | ||
| 15. | N/A | DISCHARGE VALVE | ||
| 16. | N/A | SUCTION VALVE | ||
| 17. | N/A | PISTON | ||
| 18. | N/A | WEAR RING | ||
| 19. | 500-1421 | CYLINDER SLEEVE |
