Drilling Fluid Pump for DW JT1220 M1
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

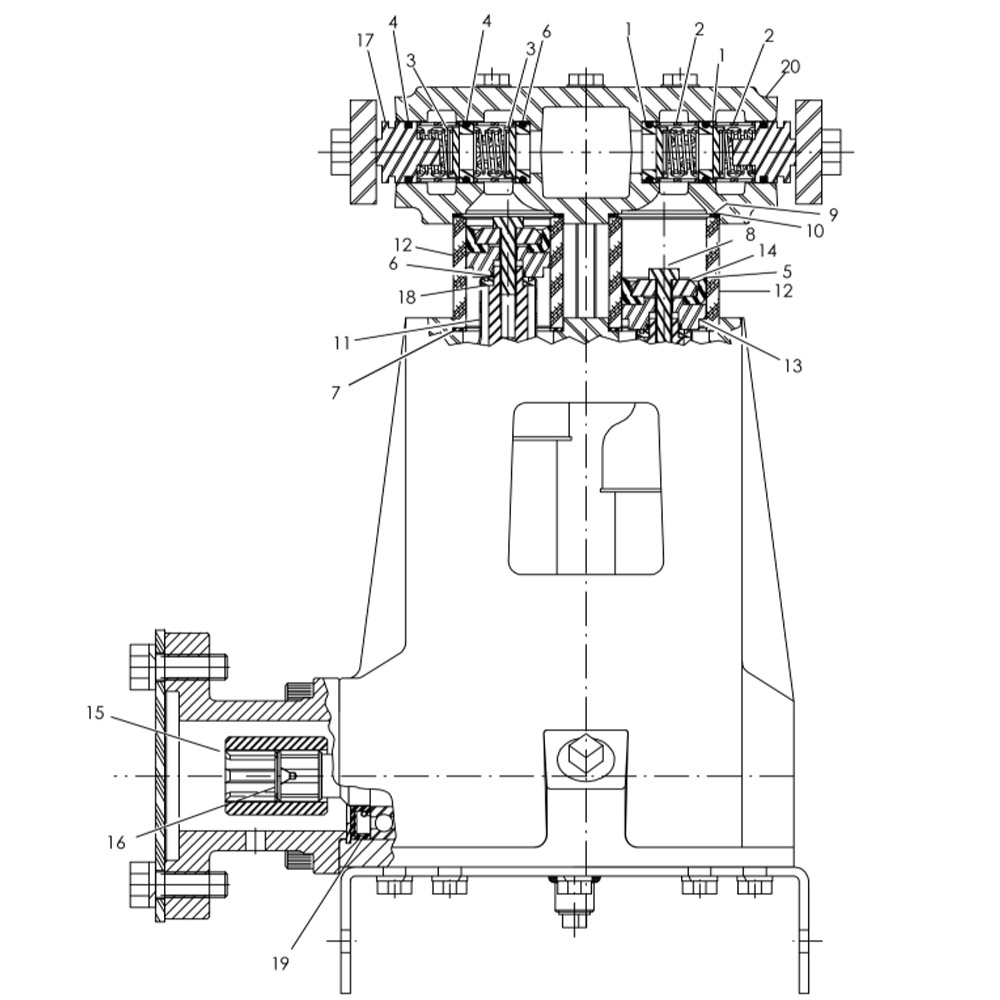

| REF. NO. | PART NUMBER | QTY | DESCRIPTION | REMARKS |
|---|---|---|---|---|
| 157-267 | 1 | DRILLING FLUID PUMP | ||
| 197-115 | – | REMANUFACTURED 157-267 PUMP | ||
| 191-023 | 1 | VALVE REPAIR KIT | INCLUDES REF NO.’S 1-4 | |
| 191-034 | 1 | PACKING REPAIR KIT | INCLUDES REF NO.’S 5-10 | |
| 1. | N/A | 8 | VALVE SEAT | |
| 2. | N/A | 8 | CAGE | |
| 3. | N/A | 8 | DISC AND SPRING | |
| 4. | N/A | 12 | O-RING | |
| 5. | N/A | 4 | CUP | |
| 6. | N/A | 4 | O-RING | |
| 7. | N/A | 4 | CYLINDER GASKET | |
| 8. | N/A | 4 | HEX HD CAP SCREW (5/16-18 X 1 1/2″ LG) | |
| 9. | N/A | 4 | SEAL RING | |
| 10. | 157-159 | 4 | O-RING (033 D90) | |
| 11. | 499-045 | 4 | UMBRELLA SEAL | |
| 12. | 499-058 | 4 | CERAMIC CYLINDER (1-3/8″) | |
| 13. | 499-059 | 4 | PACKING HOLDER | |
| 14. | 499-060 | 4 | PACKING WASHER | |
| 15. | 499-066 | 1 | COUPLER | PUMP TO DRIVE MOTOR |
| 16. | 499-067 | 1 | RETAINING RING | USED ON EARLIER MODELS |
| 500-2012 | 1 | SPRING PIN 3/32″ X 1.5″ | ||
| 17. | 499-086 | 4 | VALVE COVER | |
| 18. | 499-087 | 4 | UMBRELLA WASHER | |
| 19. | 157-751 | 4 | SEAL, CRANKSHAFT | |
| 20. | 499-825 | 1 | FLUID CYLINDER |
