Fluid Pump 18 GPM for DW JT1720
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

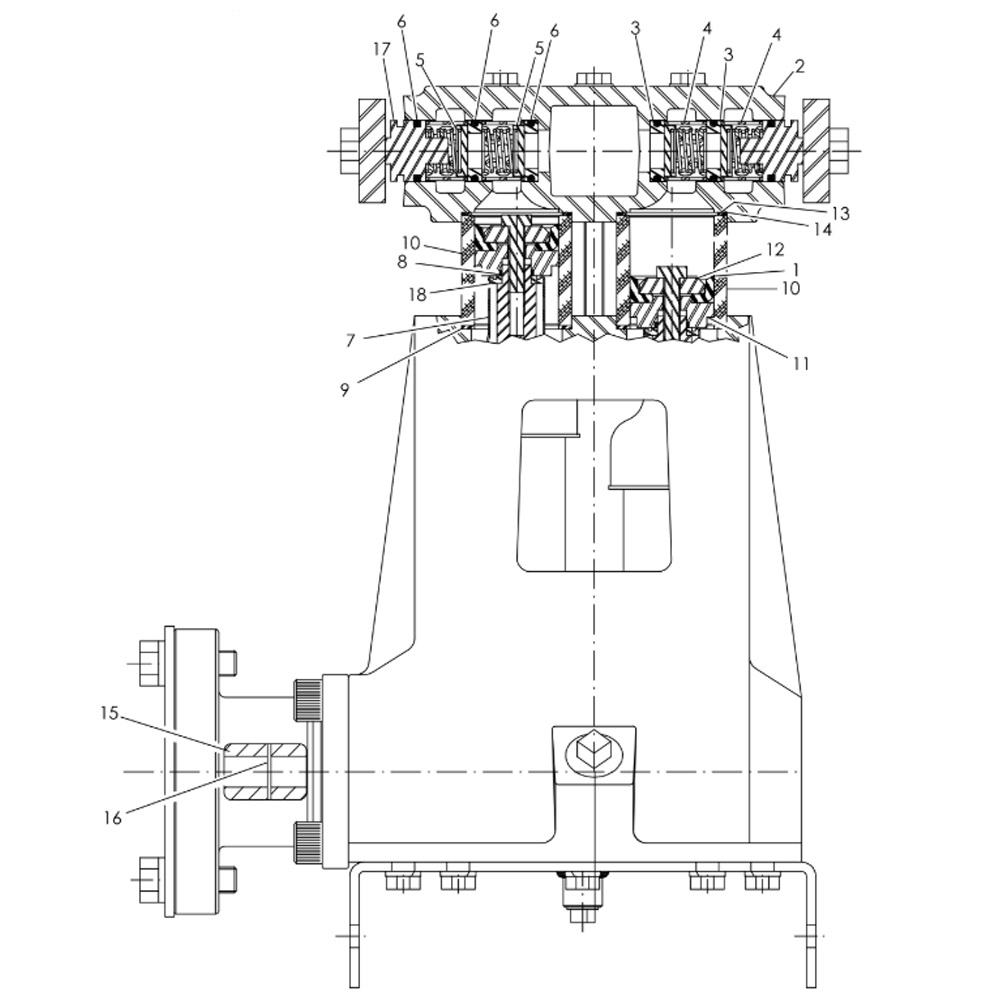

| REF. NO. | PART NUMBER | QTY | DESCRIPTION | REMARKS |
|---|---|---|---|---|
| 516-072 | – | MUD PUMP | ||
| 149-978 | DRILLING FLUID PUMP | |||
| 197-173 | REBUILT 516-072 MUD PUMP | |||
| 197-066 | REBUILT 149-978 FLUID PUMP | |||
| 191-023 | 1 | VALVE REPAIR KIT | ||
| 191-034 | 1 | PACKING REPAIR KIT | ||
| 1. | 499-057 | 4 | CUP (1-3/8″ HSN) | |
| 2. | 499-043 | 1 | FLUID CYLINDER | |
| 3. | 500-901 | 8 | VALVE SEAT | |
| 4. | 499-044 | 8 | CAGE | |
| 5. | 500-902 | 8 | DISC & SPRING | |
| 6. | 157-157 | 12 | O-RING (213 D90) | |
| 7. | 499-045 | 4 | UMBRELLA SEAL | |
| 8. | 157-158 | 4 | O-RING (015 D90) | |
| 9. | 165-845 | 4 | CYLINDER GASKET | |
| 10. | 499-058 | 4 | CYLINDER, CERAMIC (1-3/8″) | |
| 11. | 499-059 | 4 | PACKING HOLDER | |
| 12. | 499-060 | 4 | PACKING WASHER | |
| 13. | 499-048 | 4 | SEAL RING | |
| 14. | 157-159 | 4 | O-RING (033 D90) | |
| 15. | 499-066 | 1 | COUPLING (PUMP TO DRIVE MOTOR) | |
| 16. | 499-067 | 1 | RETAINING RING | |
| 500-2012 | 1 | SPRING PIN 3/32″ X 1.5″ | ||
| 17. | 499-086 | 4 | VALVE COVER | |
| 18. | 499-087 | 4 | WASHER |
