Fluid Pump 25 GPM for DW JT1720/JT1720M1
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

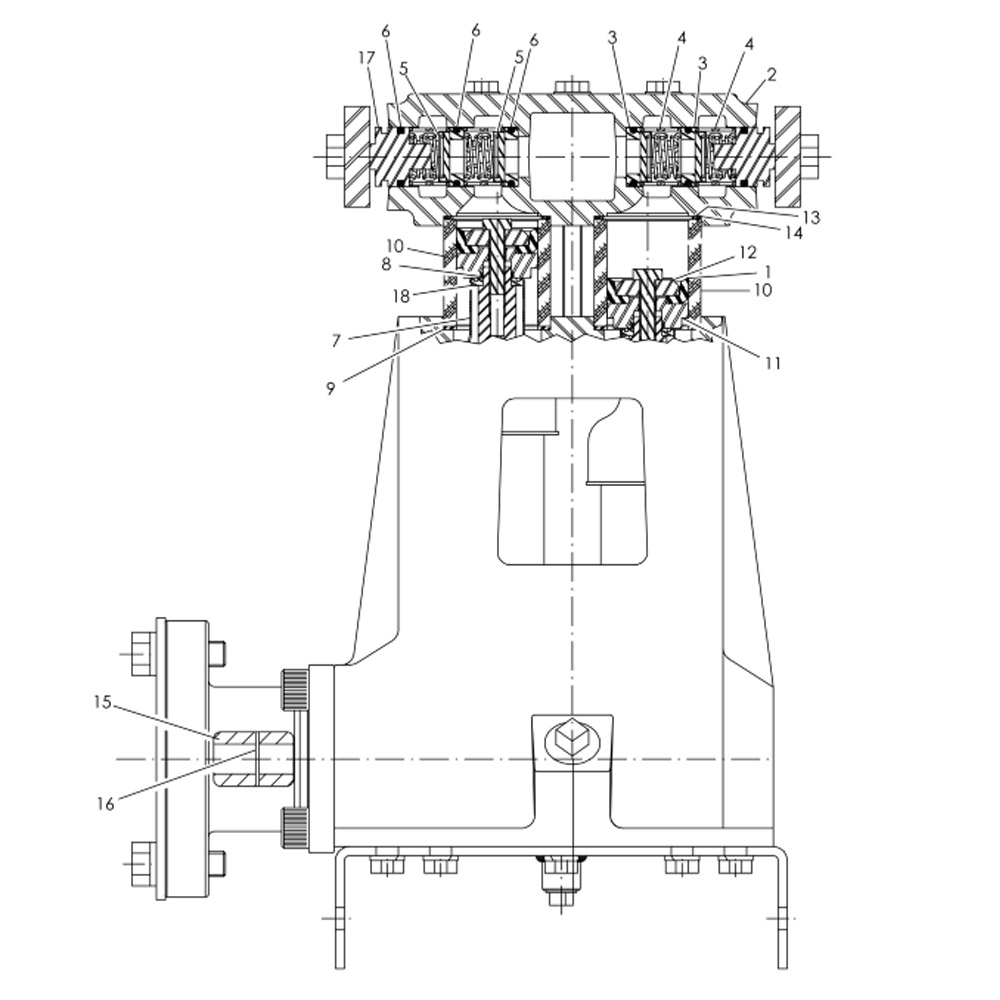

| REF. NO. | PART NUMBER | QTY | DESCRIPTION |
|---|---|---|---|
| 158-479 | – | MUD PUMP | |
| 149-977 | DRILLING FLUID PUMP | ||
| 197-174 | REBUILT 158-479 MUD PUMP | ||
| 197-065 | REBUILT 149-977 MUD PUMP | ||
| 191-022 | 1 | PACKING REPAIR KIT | |
| 191-023 | 1 | VALVE REPAIR KIT | |
| 1. | 500-900 | 4 | CUP (1-5/8″ HSN) |
| 2. | 499-043 | 1 | FLUID CYLINDER |
| 3. | 500-901 | 8 | VALVE SEAT |
| 4. | 499-044 | 8 | CAGE |
| 5. | 500-902 | 8 | DISC & SPRING |
| 6. | 157-157 | 12 | O-RING (213 D90) |
| 7. | 499-045 | 4 | UMBRELLA SEAL |
| 8. | 157-158 | 4 | O-RING (015 D90) |
| 9. | 165-845 | 4 | CYLINDER GASKET |
| 10. | 500-903 | 4 | CYLINDER, CERAMIC |
| 11. | 499-046 | 4 | PACKING HOLDER |
| 12. | 499-047 | 4 | WASHER |
| 13. | 499-048 | 4 | SEAL RING |
| 14. | 157-159 | 4 | O-RING (033 D90) |
| 15. | 499-066 | 1 | COUPLING (PUMP TO DRIVE MOTOR) |
| 16. | 499-067 | 1 | RETAINER RING |
| 500-2012 | 1 | SPRING PIN 3/32″ X 1.5″ | |
| 17. | 499-086 | 4 | VALVE COVER |
| 18. | 499-087 | 4 | WASHER |
