Mud Pump 30 GPM for DW JT2020
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

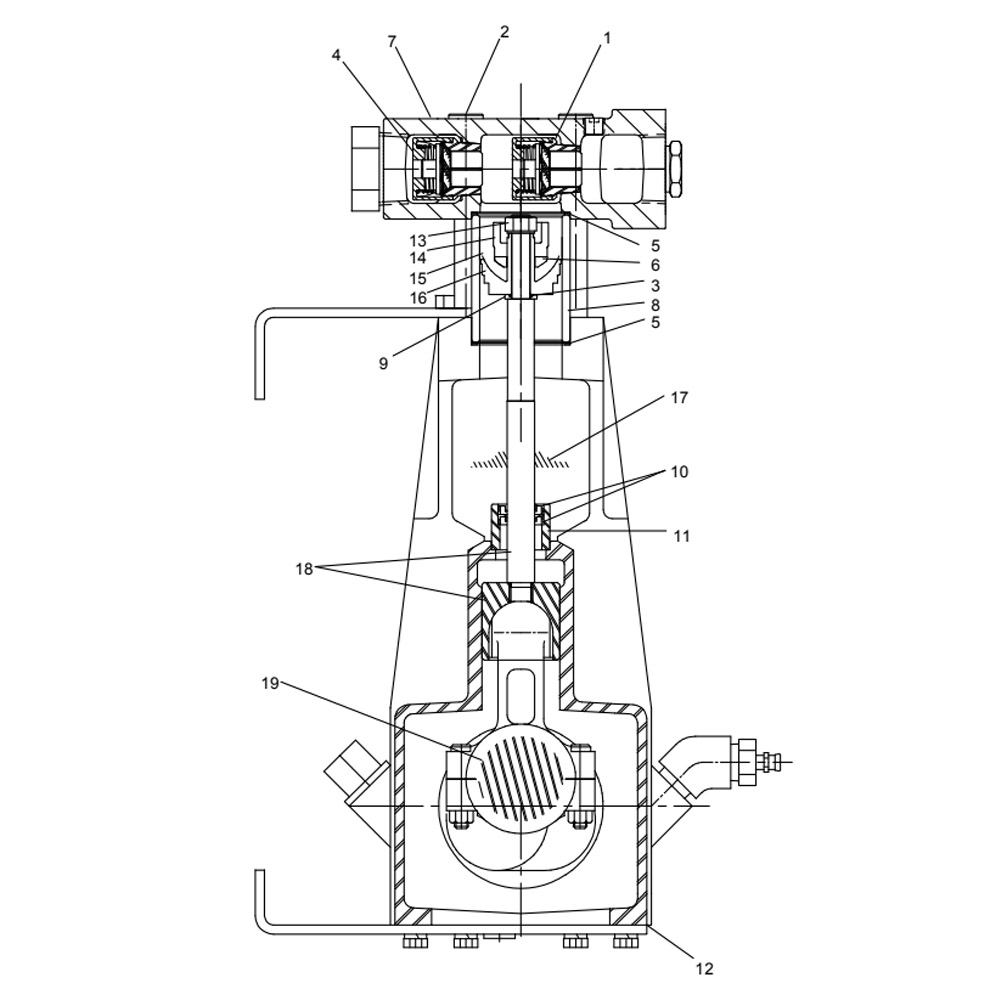

| REF. NO. | PART NUMBER | QTY | DESCRIPTION |
|---|---|---|---|
| 157-277 | – | MUD PUMP (30 GPM) | |
| 191-094 | PACKING REPAIR KIT | ||
| 190-802 | VALVE REPAIR KIT | ||
| 1. | 499-110 | 3 | VALVE – SUCTION AR |
| 2. | 108-164 | 8 | BOLT |
| 3. | 499-116 | 3 | O-RING (014 D70) |
| 4. | 157-050 | 10 | O-RING (116 D70) |
| 5. | 499-111 | 3 | VALVE – DISCHARGE AR |
| 6. | 165-730 | 3 | CYLINDER GASKET |
| 7. | 499-119 | 3 | WASHER |
| 8. | 502-089 | 1 | FLUID CYLINDER (L06) |
| 9. | 499-302 | 3 | CERAMIC CYLINDER |
| 10. | 499-113 | 3 | SEAL HOLDER |
| 11. | 499-125 | 6 | EXTERNAL SEAL |
| 12. | 499-126 | 3 | SEAL HOLDER |
| 13. | 499-123 | 1 | BASE GASKET |
| 14. | 107-734 | 3 | LOCKNUT (1/2-NC, BRASS) |
| 15. | 499-039 | 3 | PLUNGER NUT |
| 16. | 499-121 | 3 | PISTON CUP (HSN) |
| 17. | 310-962 | 1 | PISTON HOLDER |
| 18. | 153-438 | 3 | WIPER SEAL |
| 19. | 499-392 | 3 | CROSSHEAD ROD ASSEMBLY |
| 20. | 499-393 | 3 | ROD BEARING (PAIR) |
| NOT SHOWN: | |||
| 499-122 | 2 | BEARING HOUSING GASKET | |
| 499-124 | 1 | GREASE SEAL | |
| 259-352 | – | FMC PISTON/PACKING TOOL | |
| 259-470 | – | FMC VALVE TOOL | |
| 502-103 | 1 | SIGHT GAUGE (FMC) | |
| 150-2750 | REPLACEMENT O-RING | ||
