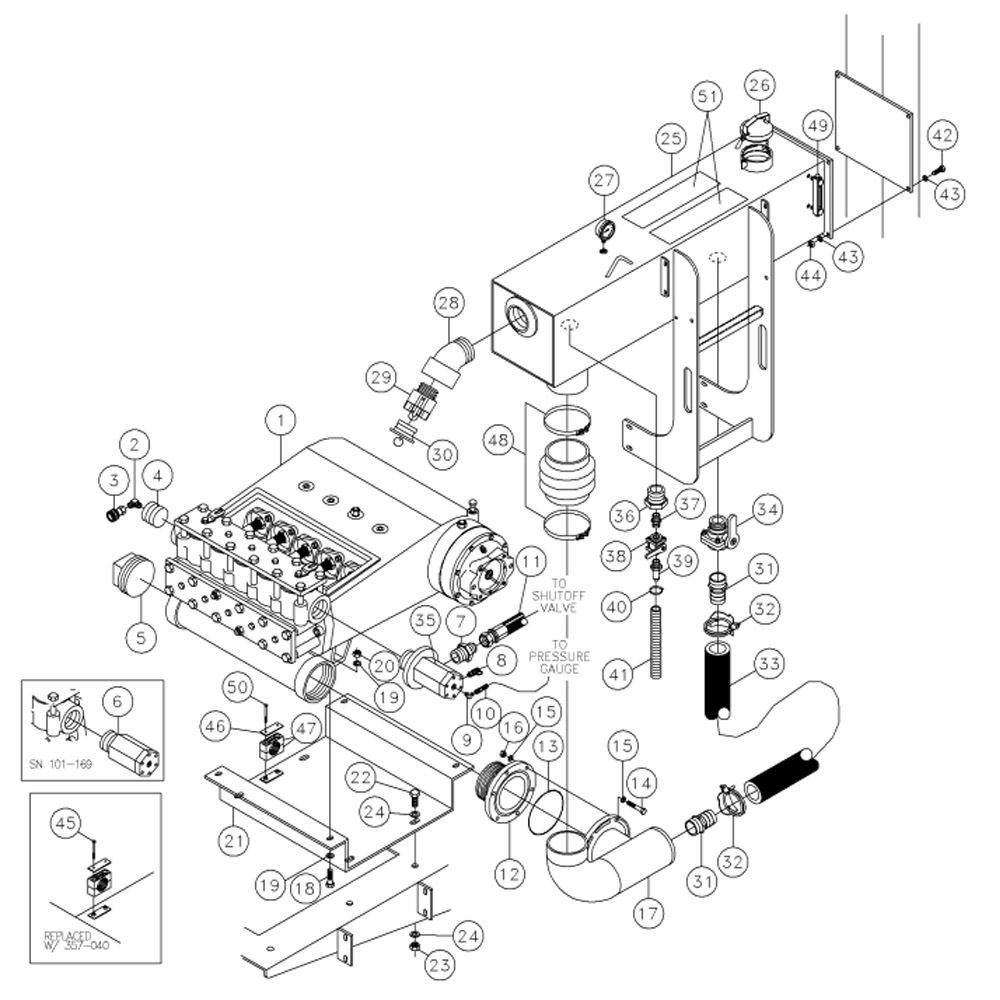

Water Pump Assembly - 150 Gal. (SC115L) - SN119-224 for D80x100

REF. NO.	PART NO.	DESCRIPTION	QTY.	REMARKS
	Revision Date	January, 2005		Update to Illustration & Parts List
1	277781001	PUMP – APLEX SC115 3″-5.50 GR	1	Breakdown Fig 6-11
2	904831001	FITTING 1/2MNPT X 1/2MNPT 90	1
3	227235001	COUPLER-1/2 NPT QUICK	1	FEMALE
4	244516001	FIT-40MNPT/8FNPT HEX REDCR	1
5	278074001	PLUG – 5″ SQUARE HEAD	1
6	239471001	WATER PMP OUTL ASSY -SC115L	1	Breakdown Fig. 6-8
7	94569001	FITTING1 1/2MNPTX24MJIC STR.	1
8	72906001	COUPLER-DIAG. TCMX20 9/16NF	1	PN Change
9	600118001	FITTING-6MORINGX4MJIC30PARKER	1	PN Change
10	53843607	HOSE-1/4X258 4FS JIC 3000 PSI	1
11	239496001	HOSE-1 1/2X92 24FSJIC ST/ST	1
12	275312001	FLANGE-WATER PUMP INLET	1
13	275321001	O-RING – SS #165	1
14	250552001	BOLT-1/2-13X2 1/4 GR8 ZNC PLTD	6
15	485025	WASHER-1/2 FLATHARDENED-ZNC	12
16	75382001	NUT-1/2-UNC GRADE 8 SLTL	6
17	277696001	TUBE – INLET WELDMENT	1
18	238245001	BOLT 5/8″-11 X 2 1/4″ GR8 HEX	4
19	235715001	WASHER-5/8 SAE HARD ZINC PLTD	8
20	238221001	NUT-5/8-11 GR8 NC Y/ZINC	4
21	276098001	BASE – SC115L PUMP	1
22	243905001	BOLT – 3/4-10X1 3/4 GR8 HEX ZP	4
23	235739001	NUT-3/4-10 GR8 ZINC PLTD	4
24	235717001	WASHER-3/4 SAE HARD ZINC PLTD	8
25	278046001	TANK-SMALL WP SURGE/ANTI-FRZ	1
26	224985001	CAP-VENTED FUEL TANK	1
27	234473001	GAUGE-30 HG-0-100 PSI	1
28	238079001	ELBOW-3″ 45DEGREE STREET	1	POLY
29	239281001	COUPLER-3″ FEMALE MNPT	1	POLY
30	234480001	PLUG-3″ CAM LOCK	1	POLY
31	215426001	HOSE BARB-2X2 MPT	2	POLY
32	238064001	CLAMP-2″ POWERLOCK HOSE	2
33	275385001	HOSE – 2″ X 30″ SUCTION	1
34	236056001	VALVE- FPT X 2″ MPT POLY BALL	1	Breakdown Fig. 6-
35	285041001	OUTLET ASSY – KT-3350 FLANGE	1	Breakdown Fig. 6-26; PN Change
36	225838001	BUSHING-2X3/4 NPT REDUCER	1	POLY
37	231049001	NIPPLE-3/4″ NPT SHORT	1	POLY
38	225847001	VALVE-3/4″FPT BALL	1	POLY, Breakdown Fig. 6-7
39	905437001	FITTING-3/4X1 BARB ST.NYLON	1
40	1580007	HOSE CLAMP – 1 1/2″	1
41	905429015	HOSE 1″ PVC SUCTION – 45″	1
42	235721001	BOLT-1/2-13X1 1/2 GR8 ZINC PLT	4
43	485025	WASHER-1/2 FLATHARDENED-ZNC	8
44	75382001	NUT-1/2-UNC GRADE 8 SLTL	4
45	250541001	BOLT-3/8-16 X 4″ GR8 HEX Y/ZI	2
46	278186005	PLATE – 2.11 HOSE CLAMP COVER	1
47	278186003	CLAMP – 2.11″ ID HOSE – PAIR	1
48	239453001	5″ EXPANSION JOINT	1
49	815960001	GAUGE-SIGHT	1
50	357040	BOLT-7/16-14X4 PLATED	2	Replaces 250541-001
51	5776001	TAPE-SAFETY WALK 4 WIDE	2.5	Specify Length
