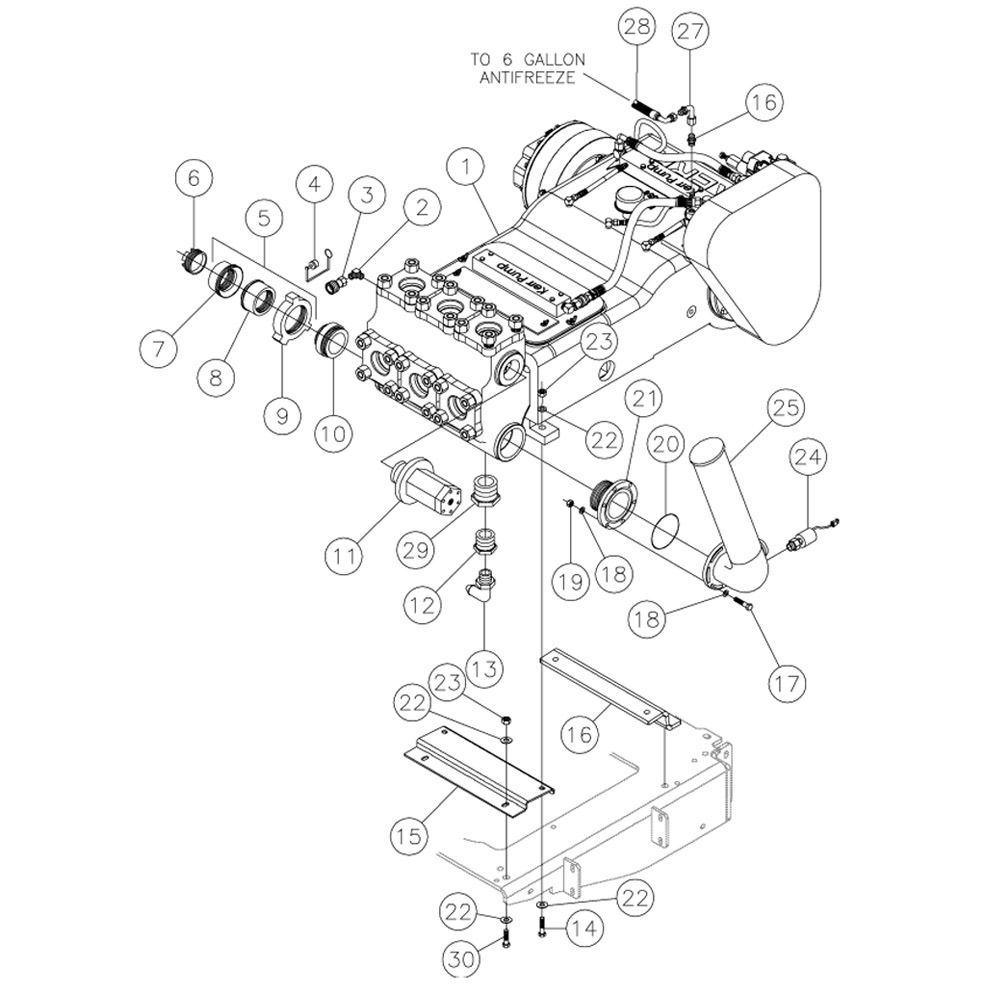

Water Pump - Kerr 150 GPM (KT3350PT-RH) (S/N 141-)

REF. NO.	PART NO.	DESCRIPTION	QTY.	REMARKS
Revision Date		December, 2006		Changes Part Number
1	285141001	PUMP-KERR KT-3350PT-3500,RH DRV,AUBURN GEAR 6.0:1	1	Breakdown Fig. 13-63 thru 13-68
2	904831001	FITTING 1/2MNPT X 1/2MNPT 90	1
3	227235001	COUPLER-1/2″NPT QUICK(FEMALE)	1
4	223756001	HOSE BARB-1 1/2 X 1 1/2 90M	1
5	287056001	UNION – 4″ HAMMER (1000PSI)	1	Included Ref. No’s 7-9
6	287057001	PLUG – 4″ NPT	1
7	287056005	SUB – 4″ FEMALE HAMMER UNION (1000PSI)	1
8	287056003	SUB – 4″ MALE HAMMER UNION (1000PSI)	1
9	287056007	NUT – 4″ HAMMER UNION WING (1000PSI)	1
10	287050001	FITTING – 4″ MPT X 3″ MPT REDUCER	1
11	294129001	ASSEMBLY – KT3350 FLANGE OUTLET	1	Breakdown Fig. 13-69
12	231150001	BUSHING-2″X1 XCX REDUCER (POLY)	1
13	905430001	FITTING-1NPTX1 BARB-90 NYLON	1
14	238245001	BOLT 5/8″ – 11 X 2 1/4 Gr 8 HEX	1
15	294168001	MOUNT – FRONT PUMP KERR 3350	1
16	285181001	MOUNT-PUMP REAR KERR 3350	1
17	240335001	BOLT-1/2-13X2 1/4 GR8 ZINC PLT	6
18	485025	WASHER-1/2 FLAT-HARDENED-YZ	12
19	75382001	NUT-1/2-UNC GRADE 8 SLTL	6
20	228181001	O-RING -#243 70D BUNA-N	1
21	287010001	FLANGE – WATER PUMP 3″ INLET	1
22	235715001	WASHER-5/8 SAE HARD ZINC PLTD	12
23	238221001	NUT – HEX -.63 – 11 – GR8 – YZ	8
24	283060001	SENSOR-MUD PRESSURE	1	S/N 141-
25	287033001	TUBE – SUCTION STABILIZER (KT 3350)	1
26	60922001	1/2MX8M JIC ST.ADAPTER	1
27	53660001	#8M JIC-#8FS JIC 90 DEG.TUBE	1
28	296254858	HOSE – 1/2 X 66 8FSJIC/8FSJIC90	1
29	287030064	BUSHING – 3″ X 2″ HEX	1
30	145645001	BOLT – 5/8 – 11 X 2 GR.8 ZYC	4
