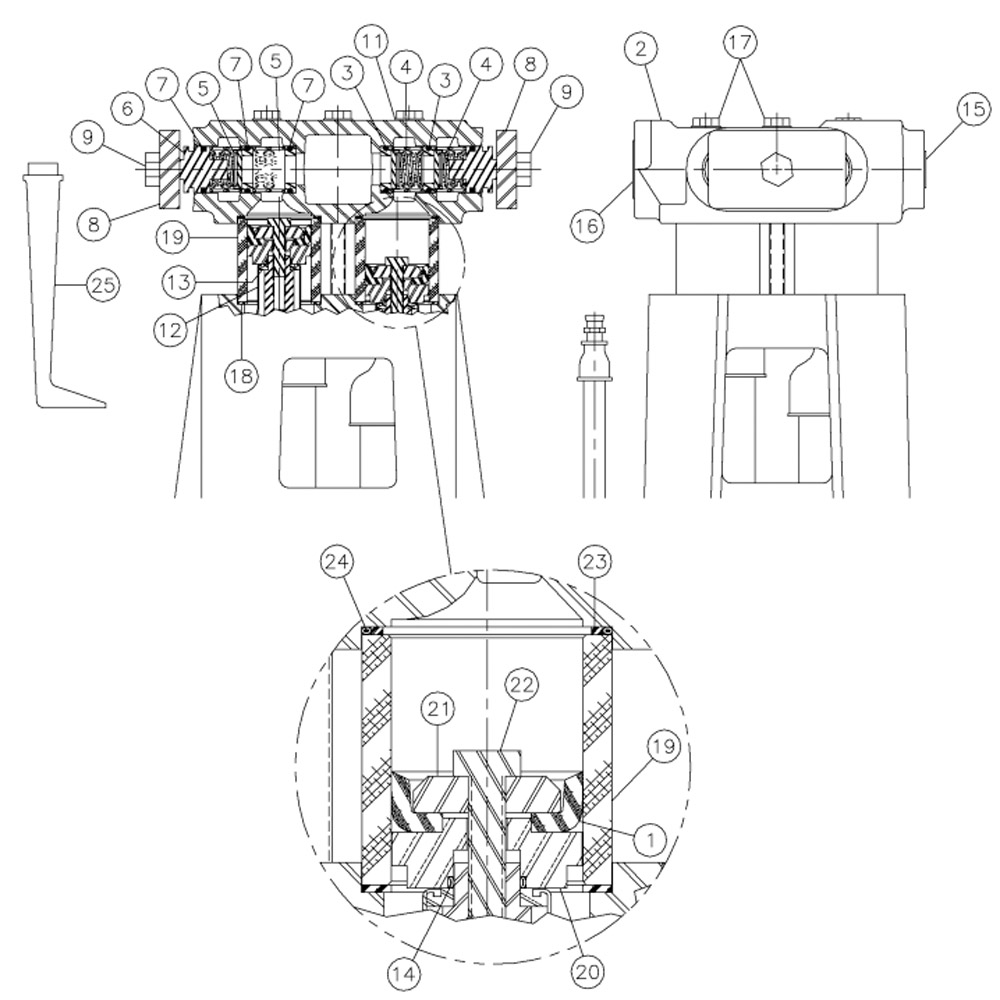

Water Pump Components – Fluid End for Vermeer D16x20/D20x22 S2
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout
| REF. NO. | PART NO. | DESCRIPTION | QTY. | REMARKS |
|---|---|---|---|---|
| Revision Date | September, 2004 | Update In Heading&Illustrations. | ||
| 1 | 224667007 | PACKING 1 5/8 HSN | 4 | |
| 2 | 236318057 | CYLINDER-FLUID | 1 | |
| 3 | 218416013 | SEAT-VALVE | 8 | |
| 4 | 218416025 | VALVE CAGE | 8 | |
| 5 | 229367027 | DISC AND SPRING ASSEMBLY | 8 | |
| 6 | 218416011 | VALVE COVER | 4 | |
| 7 | 229367029 | O-RING 1.1875 OD X .125 | 12 | |
| 8 | 218416007 | CLAMP | 2 | |
| 9 | 218416009 | CAPSCREW-HEX HD 1/2-13 X 1 1/2 | 2 | |
| 10 | 236318049 | PLUG-1/4″ PIPE | 1 | Not Shown |
| 11 | 236318059 | WASHER-7/16 BELLEVILLE | 4 | |
| 12 | 218416049 | UMBRELLA | 4 | |
| 13 | 218416047 | WASHER-UMBRELLA | 4 | |
| 14 | 218416043 | O-RING-11/16 OD X9/16ID-1/16 | 4 | |
| 15 | 218416003 | CAPLUG INT 12 | 1 | |
| 16 | 236318051 | CAPLUG INT 1.75 | 1 | |
| 17 | 236318061 | CAPSCREW-7/16-14X5 GR8 HEX HD | 4 | |
| 18 | 218416045 | GASKET-CYLINDER | 4 | |
| 19 | 224667003 | CYLINDER 1 5/8 | 4 | |
| 20 | 224667005 | PACKING HOLDER 1 5/8 | 4 | |
| 21 | 229367039 | PACKING WASHER | 4 | |
| 22 | 229367041 | CAPSCREW-HEX HD 5/16-18X1 1/2 | 4 | |
| 23 | 218416035 | SEAL RING 38-5 | 4 | |
| 24 | 218416033 | O-RING-2 1/8″OD X 1/16 | 4 | |
| 25 | 236318067 | TOOL-VALVE PULLER | 1 | |
| 236318001 | PUMP- WATER (COMPLETE) | Include Figure’s 5-6 & 5-7 | ||
| 234680019 | VALVE KIT | Inc Two Of Ref No’s 3-5 & Three of Ref No 7 | ||
| 234680021 | PACKING KIT | Inc Two Of Ref No’s 14, 18 & 22-24 |
