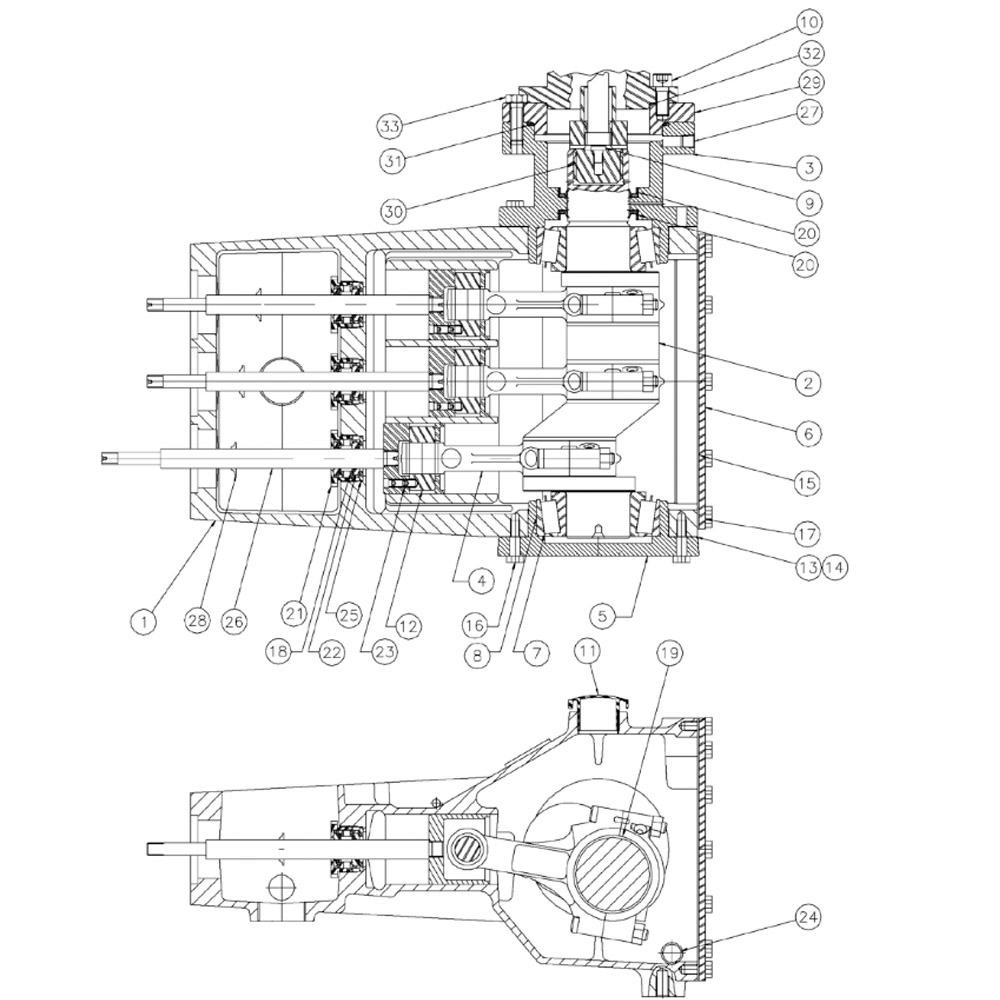

FMC Power End components for Vermeer D24x40 S2

REF. NO.	PART NO.	DESCRIPTION	QTY.
1	278882002	PUMP CASE	1
2	278882003	CRANK SHAFT	1
3	278882004	BEARING HOUSING	1
4	278882005	CONNECTING ROD	3
5	278882006	BEARING HOUSING	1
6	278882037	BACK COVER	1
7	278882008	BEARING CONE	2
8	278882009	BEARING CUP	2
9	296272977	SCREW-LOW HD SOC CAP 3/8-16 UNC-3A X 50	1
10	296272978	SCREW-HEX SOC HD CAP-1/2-13 X 1.12	4
11	276521025	OIL CAP	1
12	278882010	WRIST PIN	3
13	278882011	GASKET	2
14	278882012	SHIM	12
15	278882013	GASKET COVER	1
16	296272970	SCREW-HEX HD CAP 3/8-16X 1 1/4, GR 8 CZ	12
17	278882014	HEX HEAD CAP SCREW	36
18	278882015	SLEEVE	3
19	296272971	BEARING
20	278882017	SEAL	2
21	278882018	ROD SEAL RETAINER	3
22	904540035	OIL SEAL	6
23	278882019	SET SCREW	8
24	276521047	PLUG -1/2″ PIPE, MAG	2
25	278882020	WASHER PACKING	3
26	278882021	CROSS HEAD ASSEMBLY	3
27	296272972	PLUG-SQ HD PIPE-1/4″ NPT, POLY	1
28	904540049	WASHER-BARRIER	3
29	296272973	ADAPTER	1
30	296272974	SPLINE ADAPTER	1
31	278882025	O-RING	1
32	296272975	O-RING 4 ID X 4 1/8 OD X 1/16 NOM	1
33	296272976	SCREW-HEX HD CAP-1/2-13 X 1.50-304 SST	4
	296272960	FMC-POWER END ASSEMBLY
