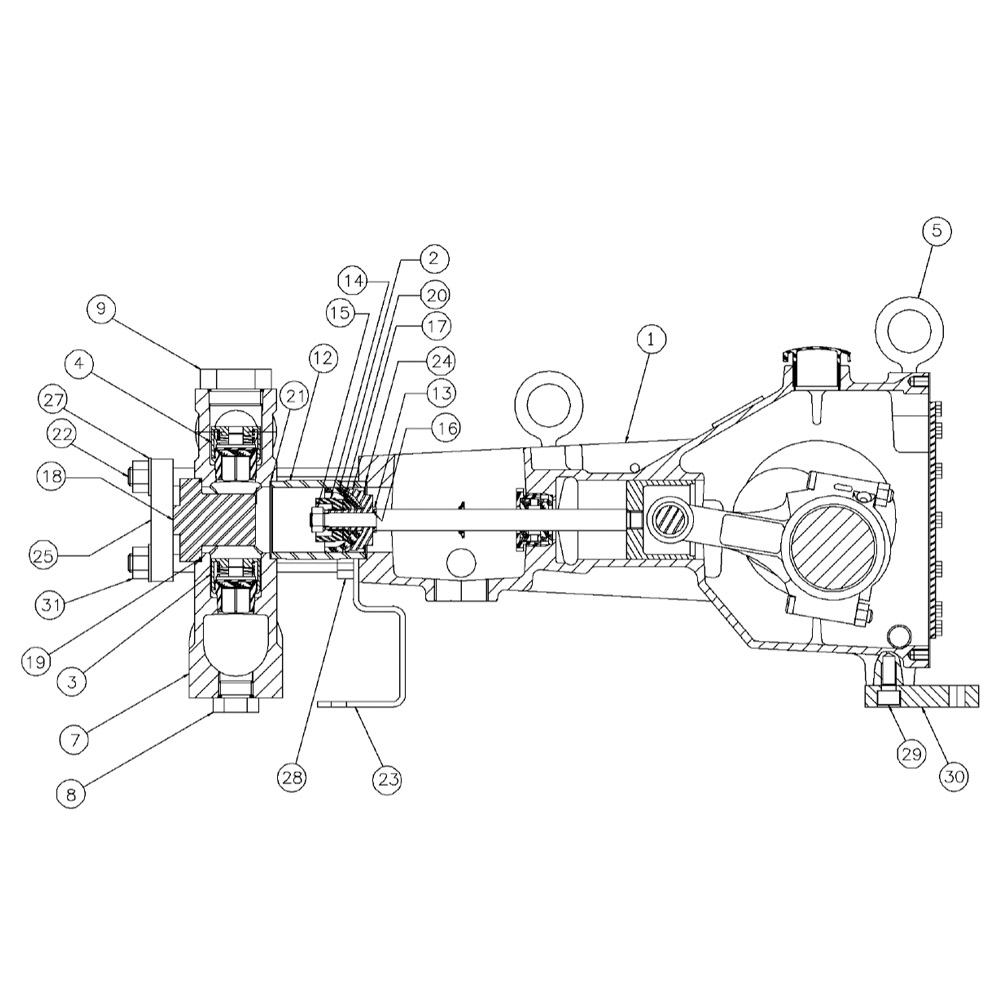

FMC Pump components inside for Vermeer D24x40 S2

REF. NO.	PART NO.	DESCRIPTION	QTY.	REMARKS
1	296272960	POWER END ASSEMBLY	1	Inc. All Items in Figure
2	278882024	PISTON CUP	3
3	225946033	VALVE ASSEMBLY-SUCTION	3
4	225946025	VALVE ASSEMBLY-DISCHARGE	3
5	278882036	EYE BOLT – 1/2 X 1-1/2	4
6	296272964	BEARING SLEEVE	1	NOT SHOWN
7	240141005	FLUID CYLINDER	1
8	225946017	PLUG-1 3/16-12 UN-2A	3
9	225946011	PLUG-1 7/8-12 UN-2A	3
10	296272965	CAP PLUG	2	NOT SHOWN
11	296272966	CAP PLUG	2	NOT SHOWN
12	278882028	PISTON CYLINDER	3
13	240141009	SEAL HOLDER	3
14	240141011	PISTON NUT	3
15	228460023	HEX NUT-SPECIAL BRASS	3
16	228460029	O-RING	3
17	278882029	PISTON HOLDER	3
18	228460027	CYLINDER COVER	3
19	225946021	O-RING	3
20	240141015	PISTON WASHER	3
21	904540105	GASKET	3
22	296272969	STUD	8
23	278882031	FRONT FOOT	1
24	904540105	GASKET	3
25	296272967	CYLINDER COVER CLAMP	1
26	278882032	LIQUID LEVEL GAUGE	1
27	904540061	WASHER-5/8	8
28	278882033	JAM NUT	2
29	278882034	SOCKET HEAD CAP SCREW	2
30	278882035	REAR FOOT	1
31	296272968	NUT	1
	296272961	FLUID CYLINDER GROUP	1	Inc. Ref. No.’s 7-11
	296272962	CYLINDER/PISTON GROUP	3	Inc. Ref. No.’s 12-21
	296272963	ATTACHING GROUP	1	Inc. Ref. No.’s 22-31
