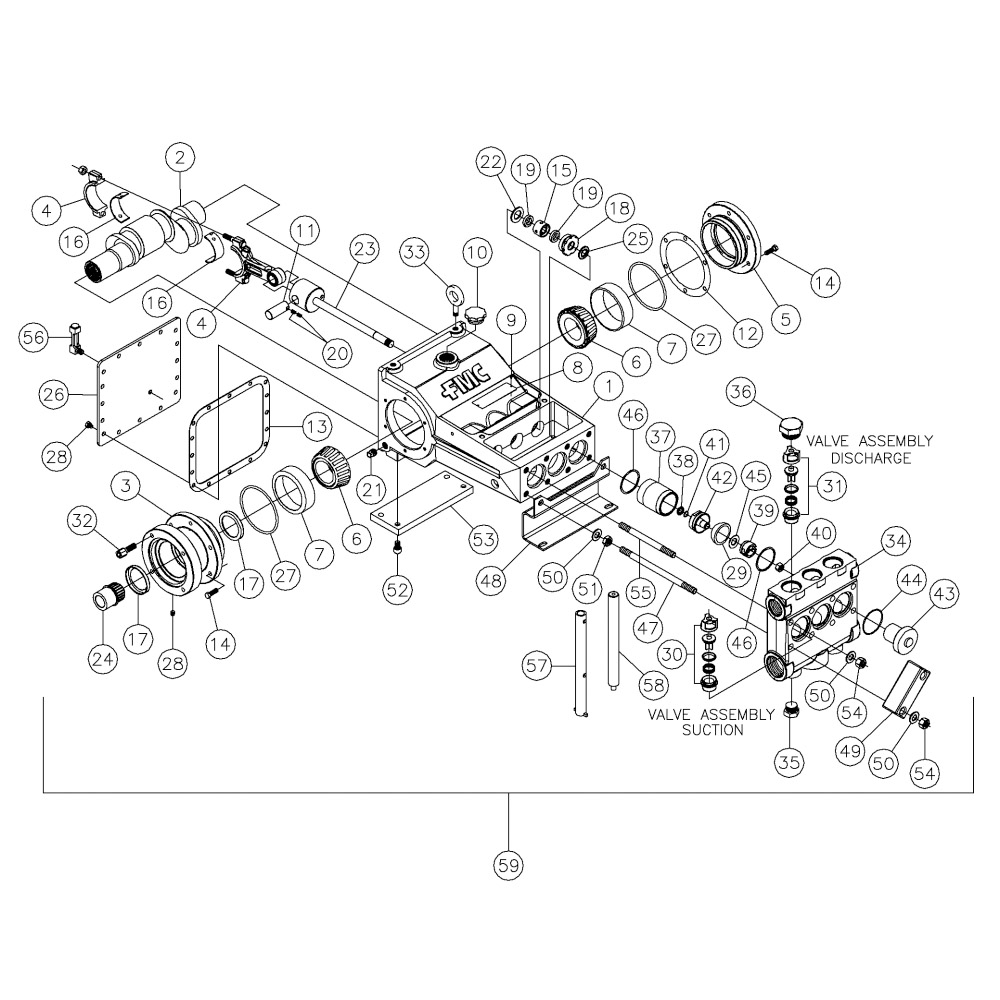

Water Pump-50 GPM FMC Components for Vermeer D24x40 S2

REF. NO.	PART NO.	DESCRIPTION	QTY.	REMARKS
1	278882002	PUMP CASE	1
2	278882003	CRANK SHAFT	1
3	278882004	BEARING HOUSING	1
4	278882005	CONNECTING ROD	3
5	278882006	BEARING HOUSING	1
6	278882008	BEARING CONE	2
7	278882009	BEARING CUP	2
8	NA	NAME PLATE	1
9	248507009	SCREW – #4 X 3/16″ LG SELF – TAPPING	2
10	276521025	OIL CAP	1
11	278882010	WRIST PIN	3
12	278882012	SHIM	A/R
13	278882013	GASKET COVER	1
14	228460003	CAPSCREW-3/8-16X1 1/4 HEX HD	12
15	278882015	SLEEVE	3
16	278882016	SHELL BEARING (PAIR)	6
17	278882017	SEAL	2
18	278882018	ROD SEAL RETAINER	3
19	904540035	OIL SEAL	6
20	278882019	SET SCREW	6
21	276521047	PLUG -1/2″ PIPE, MAG	2
22	278882020	WASHER PACKING	3
23	278882021	CROSS HEAD ASSEMBLY	3
24	278882022	CROSS OVER SUB	1
25	904540049	WASHER-BARRIER	3
26	278882037	BACK COVER	1
27	278882007	O-RING – UNIFORM #160	2
28	278882039	CAPSCREW – 3/8-16 X 3/4 LG HEX HEAD	16
29	278882024	PISTON CUP	3
30	225946033	VALVE ASSEMBLY-SUCTION	3
31	225946025	VALVE ASSEMBLY-DISCHARGE	3
32	278882027	SOCKET HEAD CAP SCREW	4
33	278882036	EYE BOLT – 1/2 X 1-1/2	4
34	240141005	FLUID CYLINDER	1
35	225946017	PLUG-1 3/16-12 UN-2A	3
36	225946011	PLUG-1 7/8-12 UN-2A	3
37	278882028	PISTON CYLINDER	3
38	240141009	SEAL HOLDER	3
39	240141011	PISTON NUT	3
40	228460023	HEX NUT-SPECIAL BRASS	2
41	228460029	O-RING	3
42	278882029	PISTON HOLDER	3
43	228460027	CYLINDER COVER	3
44	225946021	O-RING	3
45	240141015	PISTON WASHER	3
46	904540105	GASKET	6
47	278882030	STUD	6
48	278882031	FRONT FOOT	1
49	904540059	CLAMP-COVER	3
50	904540061	WASHER-5/8	10
51	278882033	JAM NUT	2
52	278882034	SOCKET HEAD CAP SCREW	2
53	278882035	REAR FOOT	1
54	904540063	NUT- 5/8-11	8
55	904540057	STUD-SHORT	2
56	278882032	LIQUID LEVEL GAUGE	1
57	240141019	TOOL – PISTON CUP REMOVAL	1
58	240141017	TOOL – VALVE INSTALLATION	1
59	278951001	PUMP – WATER		Inc. All Items In Figure
