Water Pump-Crankshaft-50 GPM Aplex for Vermeer D24x40 S2
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

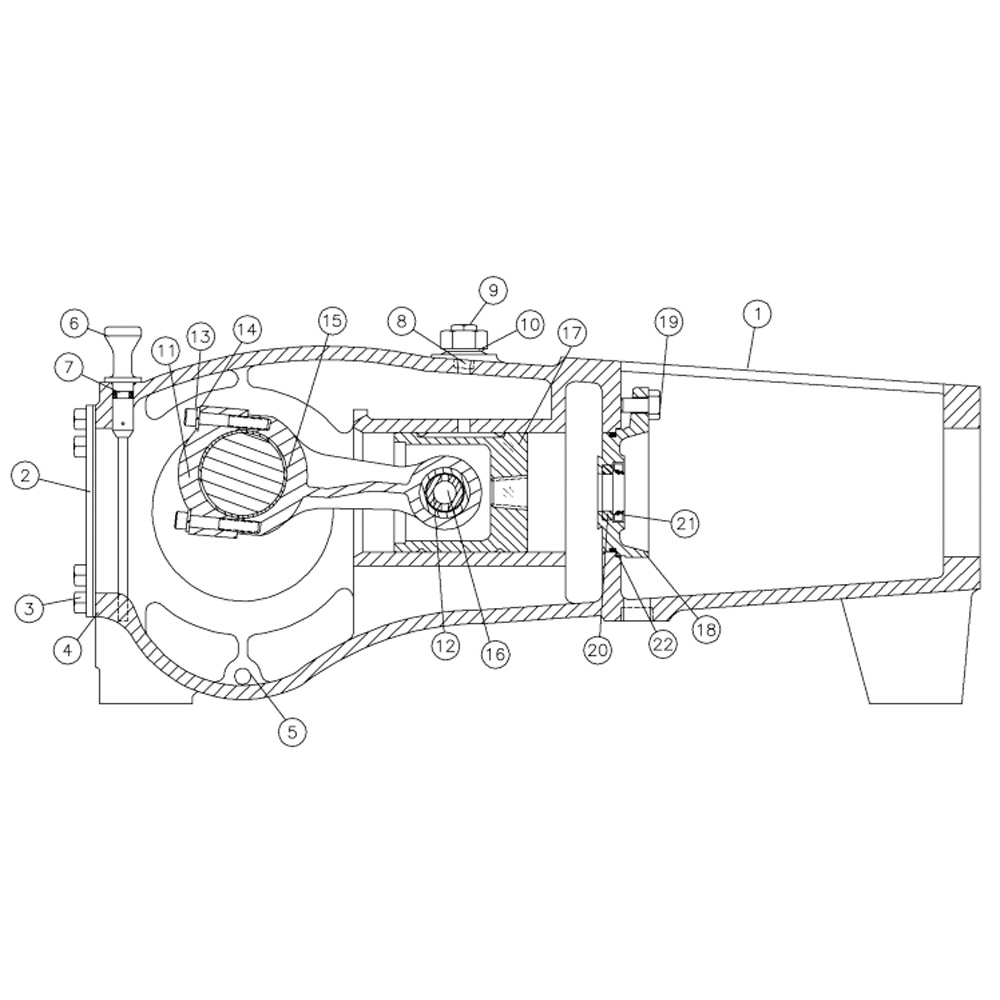

| REF. NO. | PART NO. | DESCRIPTION | QTY. | REMARKS |
|---|---|---|---|---|
| 1 | 228098011 | CRANKSHAFT | 1 | |
| 2 | 228098013 | CONE | 2 | |
| 3 | 228098015 | CUP | 2 | |
| 4 | 296272949 | SCREW -1/2″NC X 2″ LONG HEX HEAD CAP | 6 | |
| 5 | 220741113 | SHIM SET | 1 | |
| 6 | 228098025 | OIL SEAL | 2 | |
| 7 | 228098019 | BEARING RETAINER/MOTOR ADAPTER | 1 | |
| 8 | 277781025 | PLUG – CRANK SHAFT | 1 | |
| 9 | 220741121 | O-RING | 1 | |
| 10 | 228098027 | SPLINED COUPLER -SC45 PUMP | 1 | |
| 11 | 224904009 | SPACER-HARDENED SPLINE ADAPTER | 1 | |
| 12 | 239383023 | CAP SCREW-1/2 NC-1 1/4 HEX HD | 4 | |
| 13 | 275996001 | MOTOR – HYD. (EATON) 2 SP | 1 | |
| 14 | 220741125 | O-RING NITRILE | 1 | |
| 296269559 | APLEX 50 GPM MUD PUMP W/CHARLYN HYD/DR M | Inc. All Items in Figure |
