Water Pump-Fluid End-50 GPM Aplex for Vermeer D24x40 S2
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

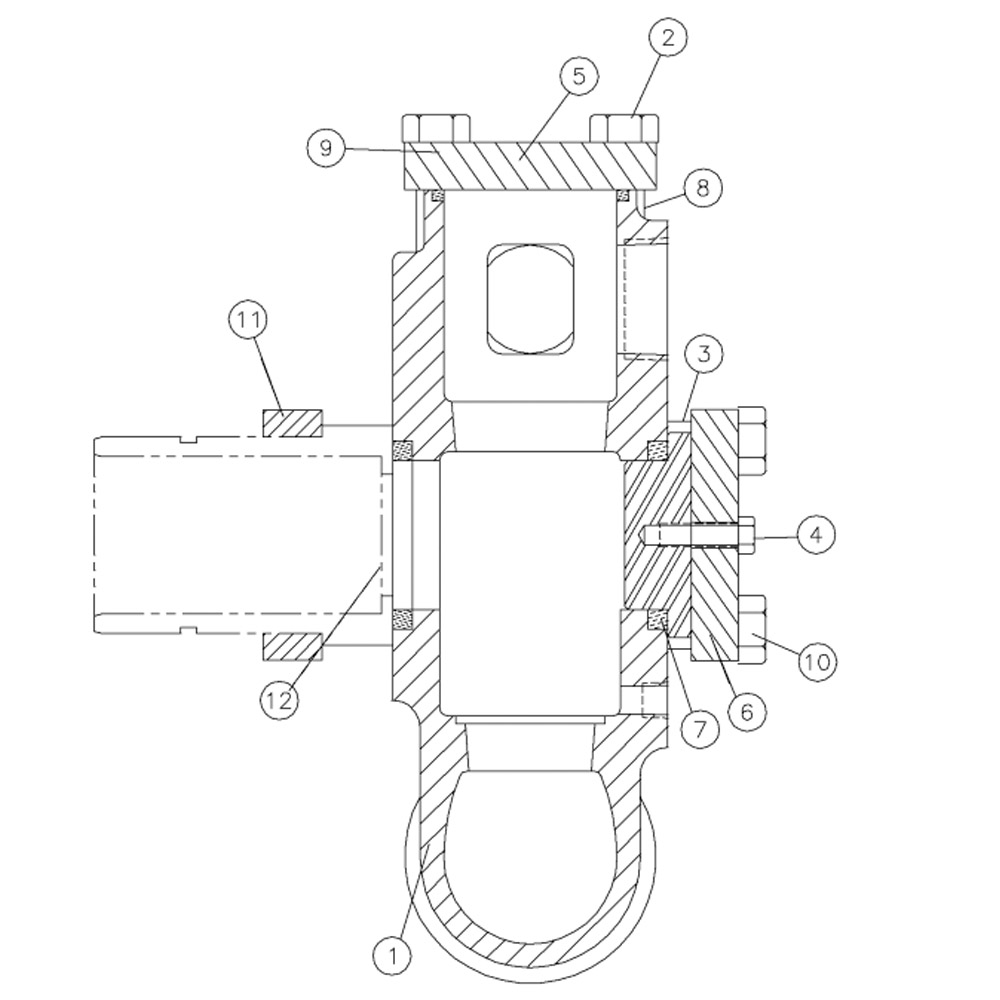

| REF. NO. | PART NO. | DESCRIPTION | QTY. | REMARKS |
|---|---|---|---|---|
| 1 | 296272950 | FLUID END | 1 | |
| 2 | 296272951 | SCREW-3/4″NC X 4 1/2″ SOCKET HEAD CAP | 2 | |
| 3 | 224408109 | VALVE COVER AND CYL HEAD PLUG | 3 | |
| 4 | 220741057 | 3/8-16X1 1/4″ HHCS | 3 | |
| 5 | 296272952 | VALVE COVER | 1 | |
| 6 | 220741059 | RETAINER PLATE | 2 | |
| 7 | 224408131 | SEAL-STUFFING BOX (RUBBER) | 3 | |
| 8 | 296272953 | O-RING #335 | 3 | |
| 9 | 277780030 | HEX HD CAP SCREW – 5/8 NCX 1 3/4 | 8 | |
| 10 | 220741065 | 5/8-11X7 1/2″ HHCS | 8 | |
| 11 | 296272954 | RETAINER PLATE | 1 | |
| 12 | 220741069 | 3/8-16 X 1 1/2″ HHCS | 2 |
