Water Pump-Power Frame-50 GPM Aplex for Vermeer D24x40 S2
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

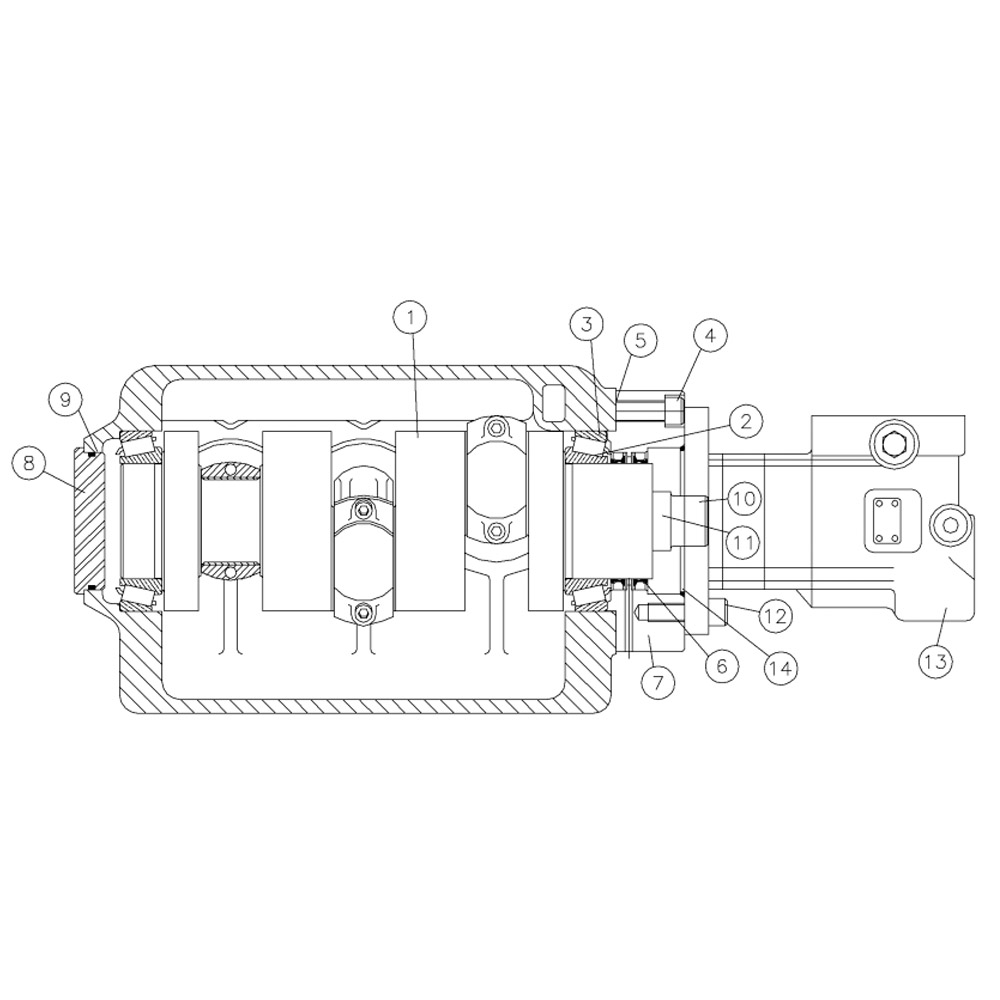

| REF. NO. | PART NO. | DESCRIPTION | QTY. | REMARKS |
|---|---|---|---|---|
| 1 | 296272942 | POWER FRAME | 1 | |
| 2 | 220741007 | CRANKCASE COVER | 1 | |
| 3 | 220741009 | 3/8-16X5/8 HHCS | 8 | |
| 4 | 220741011 | GASKET-CRANKCASE COVER | 1 | |
| 5 | 296272943 | PIPE PLUG 3/8″ SQUARE HEAD | 2 | |
| 6 | 220741021 | OIL LEVEL DIPSTICK | 1 | |
| 7 | 220741023 | O-RING 2-023 | 1 | |
| 8 | 296272944 | PIPE PLUG 1/8″ SOCKET HEAD | 3 | |
| 9 | 277781019 | FILTER – BREATHER | 1 | |
| 10 | 220741017 | 1/2″ NPT PLUG-SOCKET HEAD | 1 | |
| 11 | 220741025 | CONNECTING ROD | 3 | Inc. Ref. No.’s 12, 13, & 14 |
| 12 | 296272945 | BUSHING-WRIST PIN | 1 | |
| 13 | 220741029 | 5/16-18X2″ SOCKET HD CAP SCREW | 2 | |
| 14 | 220741031 | 5/16″ LOCKWASHER | 2 | |
| 15 | 220741033 | CRANK PIN BEARING HALF | 3 | |
| 16 | 220741035 | WRIST PIN | 3 | |
| 17 | 220741037 | CROSSHEAD | 3 | |
| 18 | 220741039 | WIPER BOX | 3 | |
| 19 | 296272946 | SCREW-3/8″X1 1/4″ HEX HEAD | 6 | |
| 20 | 220741045 | POLYPAK RING | 3 | |
| 21 | 220741047 | OIL SEAL | 3 | |
| 22 | 220741049 | O-RING | 3 | |
| 296269559 | APLEX 50 GPM MUD PUMP W/CHARLYN HYD/DR M | Inc. All Items in Figure |
