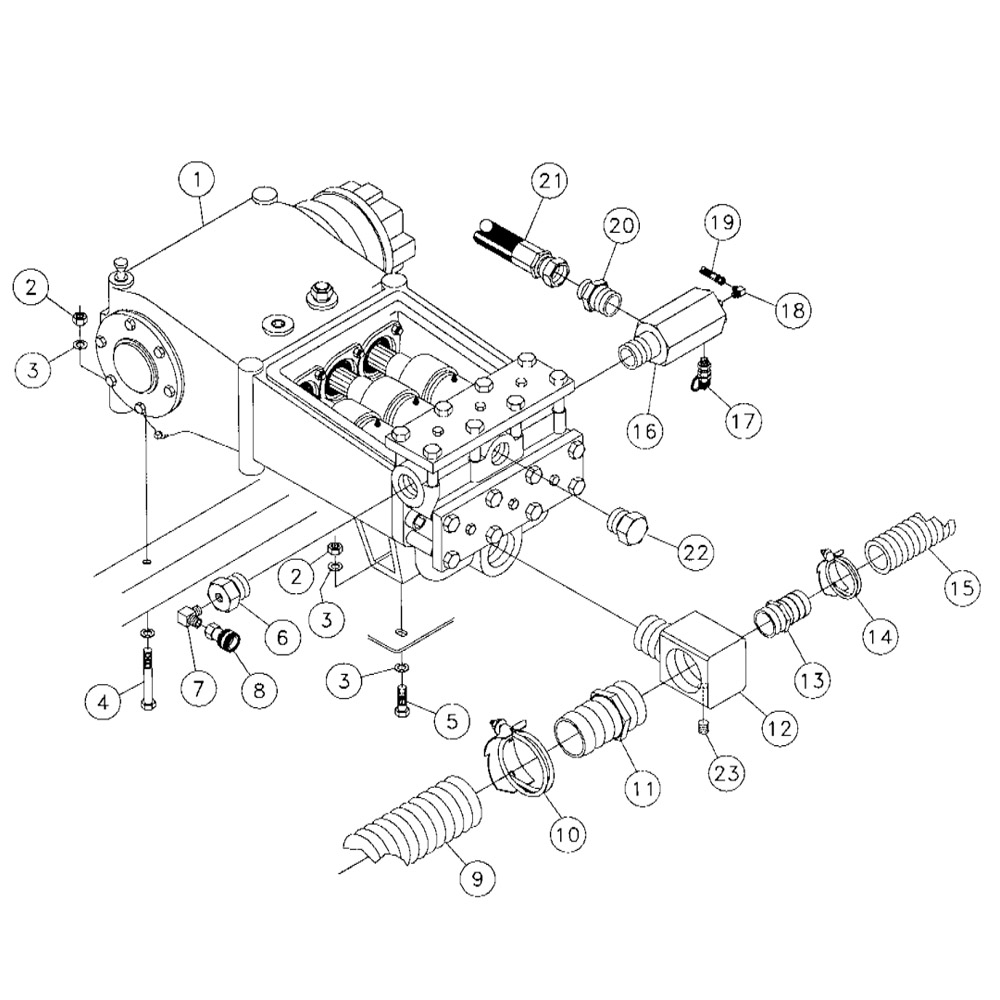

Aplex water pump assembly for Vermeer D40x40

REF. NO.	PART NO.	DESCRIPTION
1	244460-001	PUMP-SC65 2.25 TRIPLEX PLUNGER (BREAKDOWN FIG. 6-14 thru 6-19)
2	250513-001	NUT-5/8-NC GR8 TOP LOCK VZING
3	235715-001	WASHER-5/8 SAE HARD ZINC PLTD
4	250542-001	5/8-11X4 3/4 GR8 HEX BOLT
5	239245-001	BOLT 5/8″-11 X 2 1/4″ GR8 HEX
6	730-040	HEX BUSHING – 1/2X1/2
7	904831-001	FITTING 1/2MNPT X 1/2MNPT 90
8	227235-001	COUPLER-1/2″NPT QUICK(FEMALE)
9	278114-001	HOSE-3″ GT”
10	234491-001	CLAMP-3″ POWERLOCK HOSE
11	215462-001	HOSE BARB-3X3 NPT MALE (POLY)
12	244168-001	FITTING-SC-65 PUMP INLET
13	215426-001	HOSE BARB-2X2 MPT (POLY)
14	239064-001	CLAMP-2″ POWERLOCK HOSE
15	278116-001	HOSE-2″ HD SUCTION 45″
16	239494-001	WATER PUMP OUTLET ASSY-SC65 (BREAKDOWN FIG. 6-11)
17	75493-001	COUPLING MALE TCMX2-7/16″UNF-V
18	59423-001	FIT-4M JICX4M ADJ 90 DEG ELBOW
19	53843-133	HOSE-1/4X230 AFSJC (100FT)
20	71251-001	FITTING-1 1/4MNPT X 206 JIC ST
21	250568-001	HOSE-1 1/4X92 20 FSJIC ST000
22	732-015	1 1/2″ PIPE PLUG BLACK STEEL
23	735-003	1/2″ COUNTERSUNK PIPE PLUG
