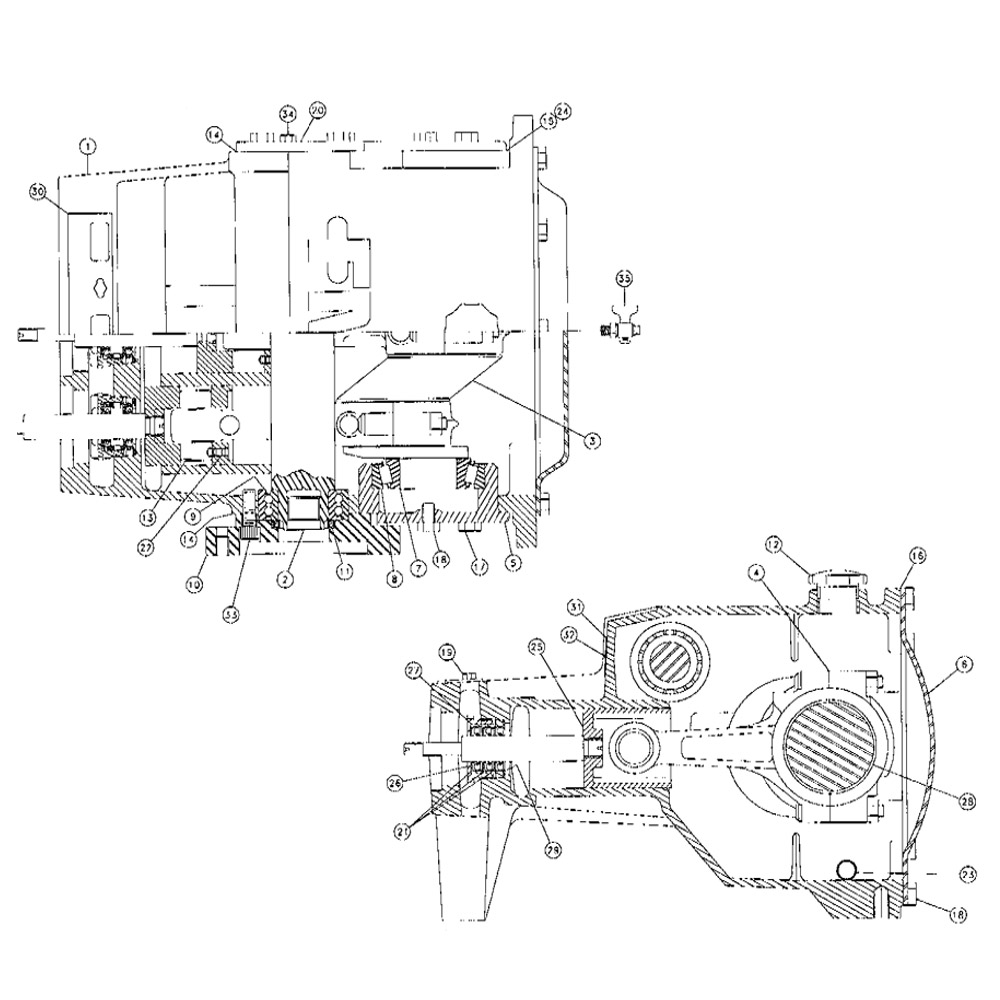

FMC water pump power end components for Vermeer D40x40

REF. NO.	PART NO.	DESCRIPTION
1	276521-003	POWER FRAME
2	276521-005	PINION SHAFT
3	276521-007	ECCENTRIC GEAR ASSEMBLY
4	276521-009	CONNECTING ROD ASSEMBLY
5	276521-011	ECCENTRIC BEARING CAP
6	276521-013	BACKCOVER
7	276521-015	BEARING CONE – 2 1/4 ID
8	276521-017	BEARING CUP – 4.437 OD
9	276521-019	BALL BEARING – 1.968 ID DRH ROW
10	276521-021	MOTOR MOUNTING ADAPTER
11	276521-023	OIL SEAL – PINION SHAFT
12	276521-025	OIL CAP
13	276521-027	WRIST PIN
14	276521-029	GASKET – PINION SHAFT
15	276521-031	GASKET – BEARING CAP
16	276521-033	GASKET – BACKCOVER
17	276521-035	CAP SCREW-1/2-13X1 1/4 LG HEX
18	276521-037	CAP SCREW-1/2-13X 3/4 LG HEX HEAD
19	276521-039	CAP SCREW-1/4-20X 1 1/2 LG HEX HEAD
20	276521-041	PINION BEARING CAP – CLOSED
21	276521-043	OIL SEAL – PLUNGER ROD
22	276521-045	SET CREW-5/16-18X5/16 LG SOCKET
23	276521-047	PLUG – 1/2″ PIPE, MAG
24	276521-049	SHIM
25	276521-051	CROSSHEAD ASSEMBLY
26	276521-053	PACKING NUT
27	276521-055	SEAL HOLDER
28	276521-057	BEARING – CONNECTING ROD
29	276521-059	GASKET – SEAL HOLDER
30	276521-061	INSPECTION PLATE
31	229367-043	NAME PLATE
32	218416-029	SCREW #4 X 3/16
33	276521-063	CAP SCREW-1/2-13X1 1/2 SOC HD
34	276521-065	CAP SCREW-5/8-18X3/8 HEX HEAD
35	276521-067	OIL LEVEL PETCOCK
