SC-65 Water pump components for Vermeer D40x40
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

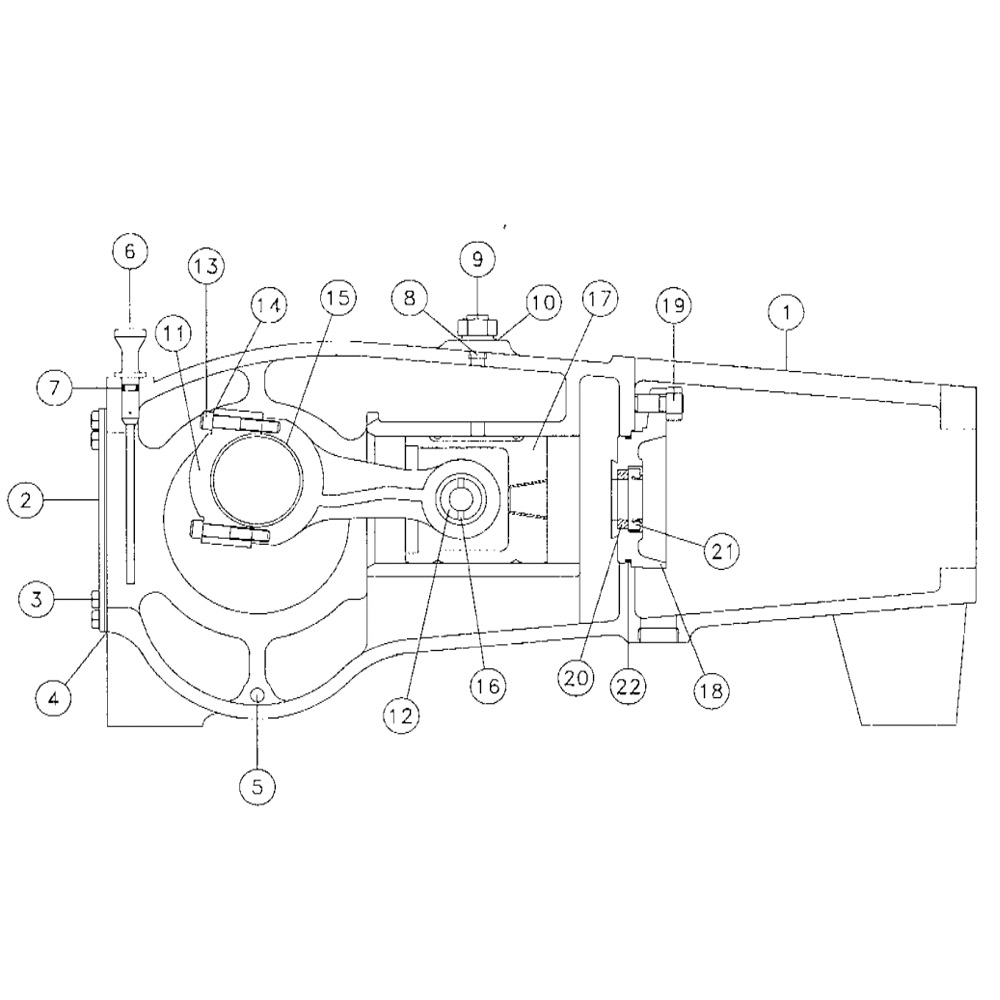

| REF. NO. | PART NO. | DESCRIPTION |
|---|---|---|
| 1 | 224408-075 | POWER FRAME |
| 2 | 224408-077 | CRANKCASE COVER |
| 3 | 220741-009 | 3/8-16X5/8 HHCS |
| 4 | 224408-079 | GASKET-CRANKCASE COVER |
| 5 | 224408-087 | 3/8″ PIPE PLUG-BLACK STEEL |
| 6 | 224408-081 | OIL LEVEL DIPSTICK |
| 7 | 224408-083 | O-RING |
| 8 | 239383-009 | PLUG-1/4 NPT SOCKET HEAD PLUG |
| 9 | 220741-009 | BREATHER-CRANKCASE 3/4M NPT |
| 10 | 735-001 | 3/4″ COUNTERSUNK PIPE PLUG |
| 11 | 224408-005 | CONNECTING ROD ASSEMBLY (INC. REF. 11-14) |
| 12 | 224408-087 | WRIST PIN BUSHING |
| 13 | 4478-024 | 3/8-16X2 ½ SOCKET HEAD |
| 14 | 480-007 | WASHER-3/8 S/T LOCK |
| 15 | 224408-089 | CRANK PIN BEARING HALF |
| 16 | 224408-091 | WRIST PIN |
| 17 | 224408-093 | CROSSHEAD |
| 18 | 224408-095 | WIPER BOX |
| 19 | 224408-097 | HEX HEAD CAP SCREW 1/2X1 ¼ |
| 20 | 224408-099 | POLYPAK RING |
| 21 | 224408-101 | OIL SEAL-WIPER BOX |
| 22 | 224408-103 | O-RING-WIPER BOX |
