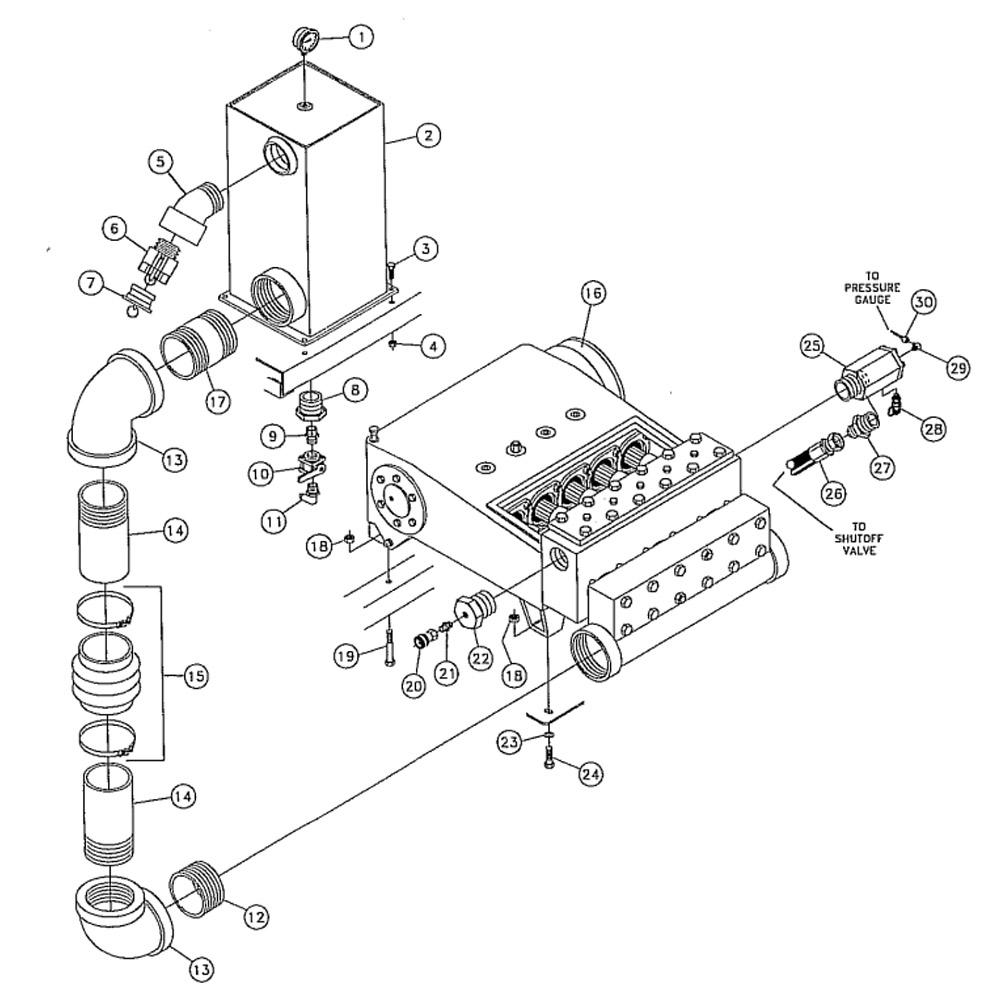

Water Pump Assembly Aplex SC-115L for Vermeer 50х100/80×100
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout
| REF. NO. | PART NO. | DESCRIPTION |
|---|---|---|
| 1 | 234473-001 | GAUGE-30 HG-0-100 PSI |
| 2 | 239351-001 | TANK-SUCTION STABILIZER |
| 3 | 359-014 | BOLT-1/2-13X1 1/2″GRADE#5 HEX |
| 4 | 423-001 | NUT-1/2 NC SLTL UTB |
| 5 | 239454-001 | FITTING-4″BORE ST ELBOW POLY |
| 6 | 239281-001 | COUPLER-3″ FEMALE MNPT (POLY) |
| 7 | 234480-001 | PLUG-3″ CAM LOCK (POLY) |
| 8 | 225836-001 | BUSHING-2X3/4 NPT REDUCER POLY |
| 9 | 231049-001 | NIPPLE-3/4″ NPT SHORT (POLY) |
| 10 | 225847-001 | VALVE-3/4″FPT BALL (POLY) |
| 11 | 225845-001 | HOSE INSERT-3/4X3/4 MPT SOPOLY |
| 12 | 239449-001 | 3″ NPT CLOSE NIPPLE |
| 13 | 239448-001 | FITTING-5″ 90 DEG ELBOW |
| 14 | 239465-001 | PIPE-PUMP INLET |
| 15 | 239453-001 | 5″ EXPANSION JOINT |
| 16 | 239383-001 | PUMP-APLEX SC115L (BREAKDOWN FIG. 6-7 THRU 6-12) |
| 17 | 244595-001 | FITTING-5X4 1/2 PIPE NIPPLE |
| 18 | 430-001 | NUT-5/8-11 NC SELF LOCKING |
| 19 | 366-044 | 5/8-11X4 1/2GRADE#5 HEX BOLT |
| 20 | 227235-001 | COUPLER-1/2″NPT QUICK(FEMALE) |
| 21 | 707-003 | 1/2″ NPT HEX NIPPLE |
| 22 | 244516-001 | FITTING-40MNPT/ORNPT HEX REDCR |
| 23 | 85706-001 | WASHER-5/8 HARDEN |
| 24 | 366-020 | 5/8-11X2″GRADE#5 HEX BOLT |
| 25 | 239471-001 | WATER PUMP OUTLET ASSY SC115L (BREAKDOWN FIG. 6-13) |
| 26 | 239496-001 | HOSE-1 1/2X92 2FSJIC ST/ST |
| 27 | 94569-001 | FITTING1 1/2MNPTX24MJIC STR. |
| 28 | 75493-001 | COUPLING-MALE TCMX2-7/16″UNF-V |
| 29 | 59423-001 | FIT-4M JICX4M ADJ 90 DEG.ELBOW |
| 30 | 244521-001 | HOSE-.078X230 4FSJ IC ST |
