Water Pump fluid end components Aplex SC-115L for Vermeer 50х100/80×100
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

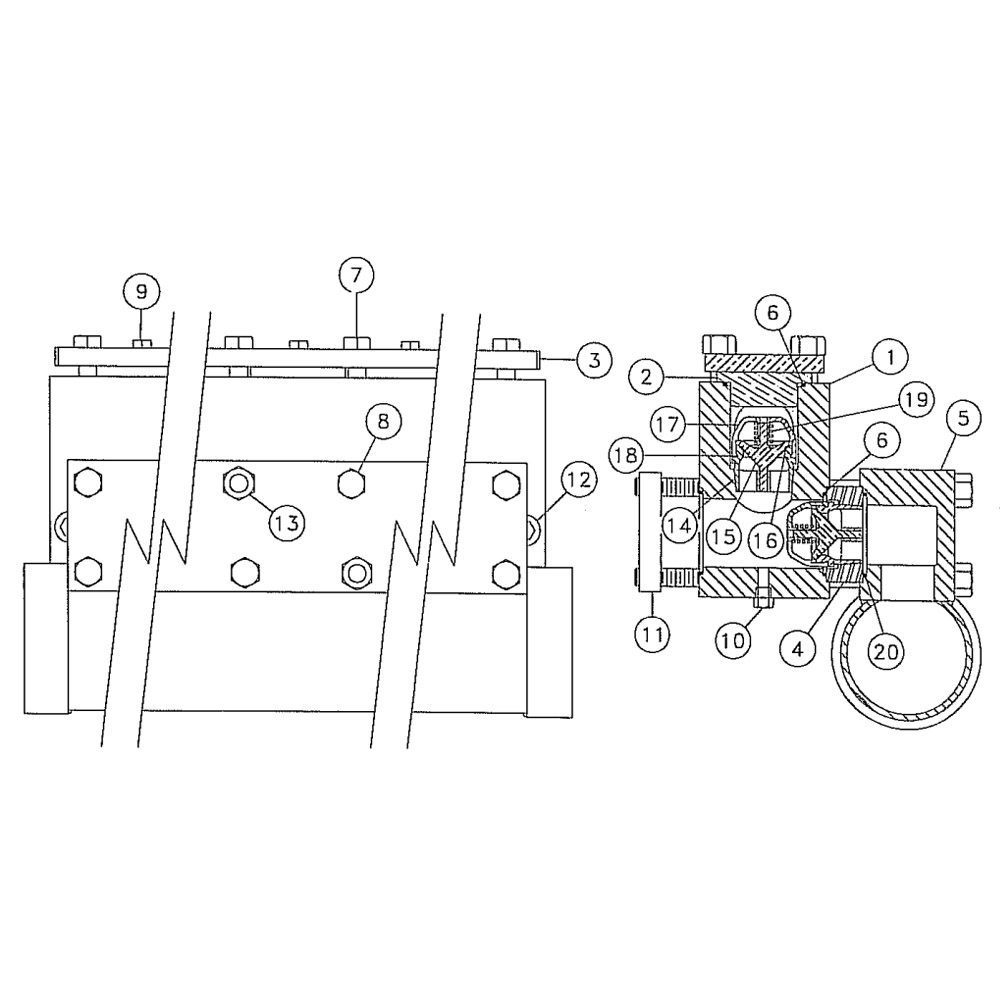

| REF. NO. | PART NO. | DESCRIPTION |
|---|---|---|
| 1 | 239383-061 | FLUID END-FORGED STEEL |
| 2 | 239383-063 | SET SCREW – VALVE COVER PLUG |
| 3 | 239383-019 | VALVE COVER RETAINER PLATE |
| 4 | 239383-065 | SET SCREW -SUCTION MANIFOLD OCK |
| 5 | 239383-067 | SUCTION MANIFOLD |
| 6 | 239383-021 | O-RING |
| 7 | 239383-069 | CAP SCREW-3/4 NC X 2 1/4 HEX H |
| 8 | 239383-071 | CAP SCREW-3/4 NC X 13 HEX HEAD |
| 9 | 239383-023 | CAP SCREW-1/2 NC-1 1/4 HEX HD |
| 10 | 239383-073 | PIPE PLUG-1/4 NC HEX HEAD |
| 11 | 239383-075 | RETAINER PLATE |
| 12 | 239383-077 | CAP SCREW-7/8 NC X 6 1/4 HEX H |
| 13 | 239383-081 | STUD-P.E. TO L.E. |
| 14 | 239383-025 | VALVE SEAT-HARDENED STAINLESS |
| 15 | 239383-027 | DOUBLE STEM VALVE 17-4PH SS |
| 16 | 239383-029 | O-RING POLYURETHANE SIZE 2-030 |
| 17 | 239383-031 | GUIDE CAGE-STAINLESS STEEL |
| 18 | 239383-033 | O-RING NITRILE RUBBER 2-005 |
| 19 | 239383-035 | VALVE SPRING-ICONEL1 9/16 FLG |
| 20 | 239383-037 | O-RING – 154 |
