Water Pump inside components aplex SC-115L for Vermeer 50х100/80×100
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

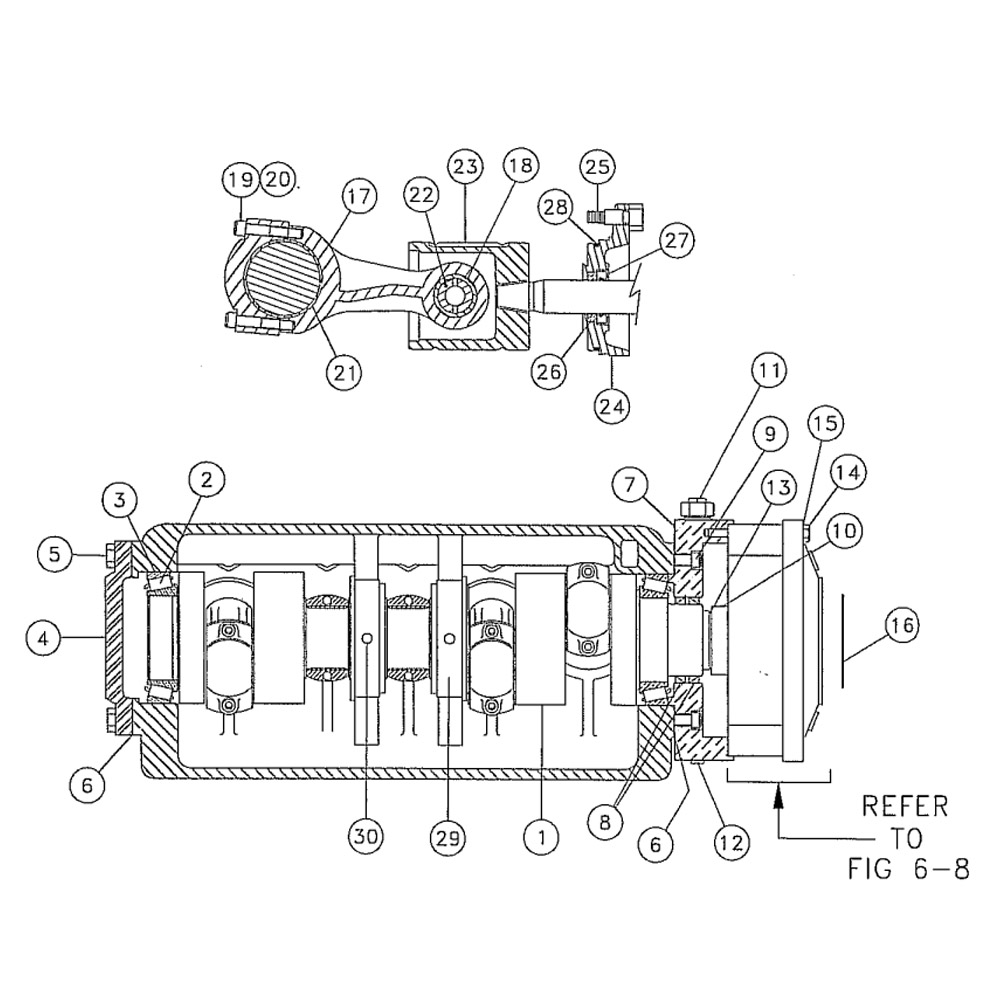

| REF. NO. | PART NO. | DESCRIPTION |
|---|---|---|
| 1 | 239383-059 | CRANKSHAFT |
| 2 | 234309-005 | BEARING CONE |
| 3 | 234309-007 | BEARING CUP |
| 4 | 234309-009 | BLIND BEARING CUP |
| 5 | 224408-097 | HEX HEAD CAP SCREW 1/2 X 1 ½ |
| 6 | 234309-011 | SHIM SET |
| 7 | 234309-013 | BEARING RETAINER |
| 8 | 239383-079 | OIL SEAL |
| 9 | 55419-001 | SCREW-1/2-13X2 SOCKET HEAD CAP |
| 10 | 234309-017 | PLANETARY OUTPUT SHAFT |
| 11 | 220741-019 | BREATHER-CRANKCASE 3/4M NPT |
| 12 | 734309-019 | 1/4 NPT PIPE PLUG |
| 13 | 234309-021 | SNAP RING |
| 14 | 234309-023 | 5/16-18 HEX HD CAPSCREW 3 1/4 |
| 15 | 234309-025 | WASHER-STAT-O-SEAL- 5/16 |
| 16 | 239383-087 | O-RING |
| 17 | 224408-085 | CONNECTING ROD (INC. REF. 18, 19 & 20) |
| 18 | 224408-087 | WRIST PIN BUSHING |
| 19 | 4478-024 | 3/8-16X2 1/2 SOCK HD. |
| 20 | 480-007 | WASHER-3/8 S/T LOCK |
| 21 | 224408-089 | CRANK PIN BEARING HALF |
| 22 | 224408-091 | WRIST PIN |
| 23 | 224408-093 | CROSSHEAD |
| 24 | 224408-095 | WIPER BOX |
| 25 | 224408-097 | HEX HEAD CAP SCREW 1/2 X 1 ½ |
| 26 | 224408-099 | POLYPAK RING |
| 27 | 224408-101 | OIL SEAL-WIPER BOX |
| 28 | 224408-103 | O-RING-WIPER BOX |
| 29 | 239383-017 | BEARING-CENTER |
| 30 | 239383-089 | SET SCREW-3/8 NC X1 1/2 SOC HD |
