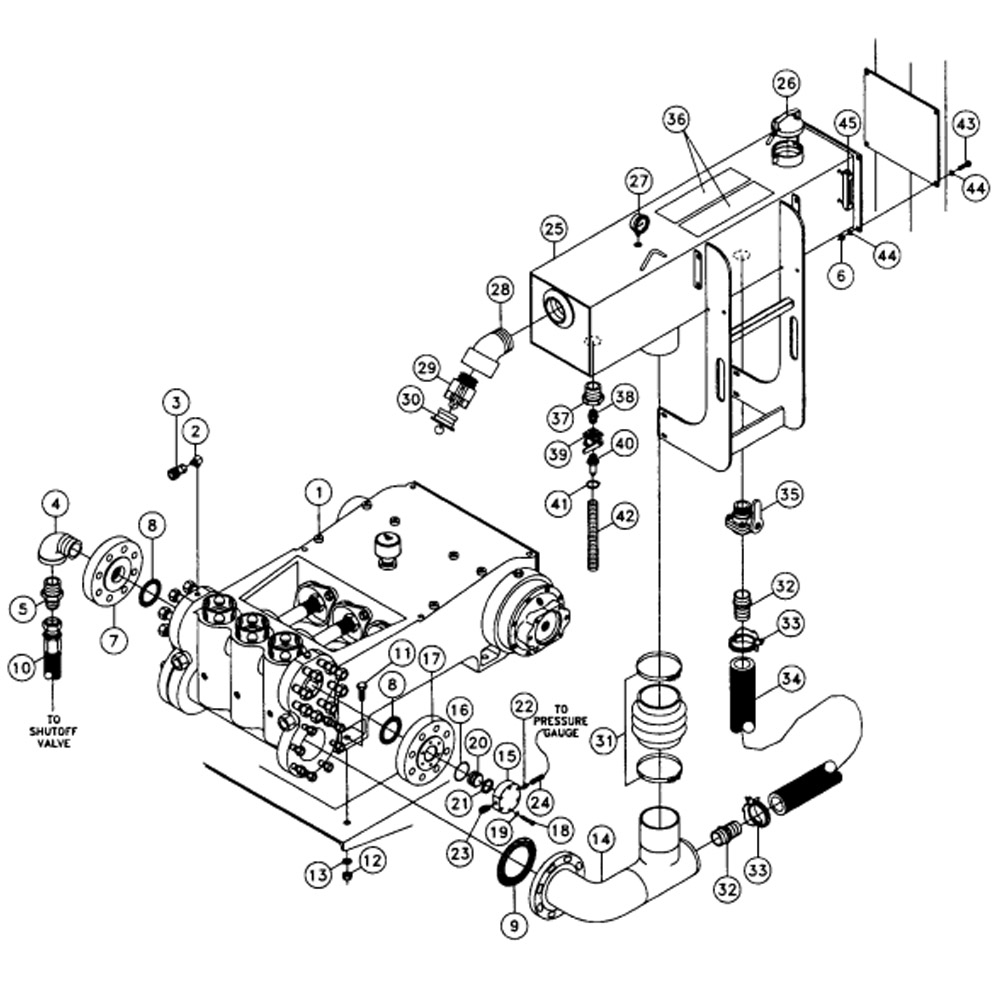

Water Pump Assembly - 200 Gal. (SC115L) - SN119-224 for D80x100

REF. NO.	PART NO.	DESCRIPTION	QTY.	REMARKS
1	277780003	PUMP-SC170 4″-07 GR TRIPLEX	1	Inc Ref. 8 & 9
2	904831001	FITTING 1/2MNPT X 1/2MNPT 90	1
3	227235001	COUPLER-1/2″NPT QUICK	1	FEMALE
4	278063001	FITTING-2″ X 90 DEG BLK STRT EL	1
5	278061001	FITTING-24 MJJC X 2 MNPT CONNCT	1
6	75382001	NUT-1/2-UNC GRADE 8 SLTL	4
7	278062001	FITTING-SC170 OUTLET	1	DRL FLD
8	277780002	GASKET-DISCHARGE	2	4.125 OD
9	277780003	GASKET-SUCTION	2	7.75 OD
10	278060001	HOSE-1 1/2X67 24JJCST/ST2500	1
11	235746001	BOLT-3/4-10 X 2 GR8 HEX ZNC PLTD	4
12	235739001	NUT-3/4-10 GR8 ZINC PLTD	4
13	235717001	WASHER-3/4 SAE HARD ZINC PLTD	4
14	278054001	TUBE-WELDED INLET	1
15	277824001	COVER-SC170 OUTLET FITTING	1
16	227599001	O-RING #AS-231	1
17	277821001	FITTING – SC170 OUTLET	1
18	235720001	BOLT-3/8-16 X 1 3/4 GR8 ZINC PLT	6
19	235713001	WASHER-3/8 SAE HARD ZINC PLTD	6
20	239252001	PISTON-SC65 OUTLET FITTING	1
21	51181001	O-RING #326	1
22	60908001	FITTING-4M X 4M JIC STR ADAPTER	1
23	75493001	COUPLER-MALE TCMX2-7/16″ UNF-V	1
24	53843607	HOSE-1/4 X 258 4FS JIC 3000 PSI	1
25	277810001	TANK-LRG WP SURGE/ANTI-FREEZE	1
26	224395001	CAP-VENTED FUEL TANK	1
27	234473001	GAUGE-30 HG-0-100 PSI	1
28	236079001	ELBOW-3″ 45DEGREE STREET	1	POLY
29	236080001	“COUPLER 3” FEMALE MNPT	1	POLY
30	234480001	PLUG 3″ CAM LOCK	1	POLY
31	239453001	5″ EXPANSION JOINT	1
32	215426001	HOSE BARB-2 X 2 MPT	2	POLY
33	236064001	CLAMP-2″ POWERLOCK HOSE	2
34	275385001	HOSE-2″ X 30″ SUCTION	1
35	236645001	VALVE-2″ FPT X 2″ MPT POLY BALL	1	Breakdown Fig. 6-7
36	577601	TAPE-SAFETY WALK 4″ WIDE	A/R	Specify Length
37	225638001	BUSHING-2 X 3/4 NPT REDCR	1
38	231049001	NIPPLE-3/4″ NPT SHORT	1	POLY
39	225847001	VALVE-3/4″FPT BALL	1	POLY, Breakdown Fig. 6-7
40	905437001	FITTING-3/4 X 1 BARB ST. NYLON	1
41	1580007	HOSE CLAMP -1 1/2″	1
42	905429015	HOSE 1″ PVC SUCTION – 45′	1
43	235721001	BOLT-1/2-13 X 1 1/2 GR8 ZINC PLT	4
44	485025	WASHER-1/2 FLATHARDENED-ZINC	8
45	615960001	GAUGE-SIGHT	1
