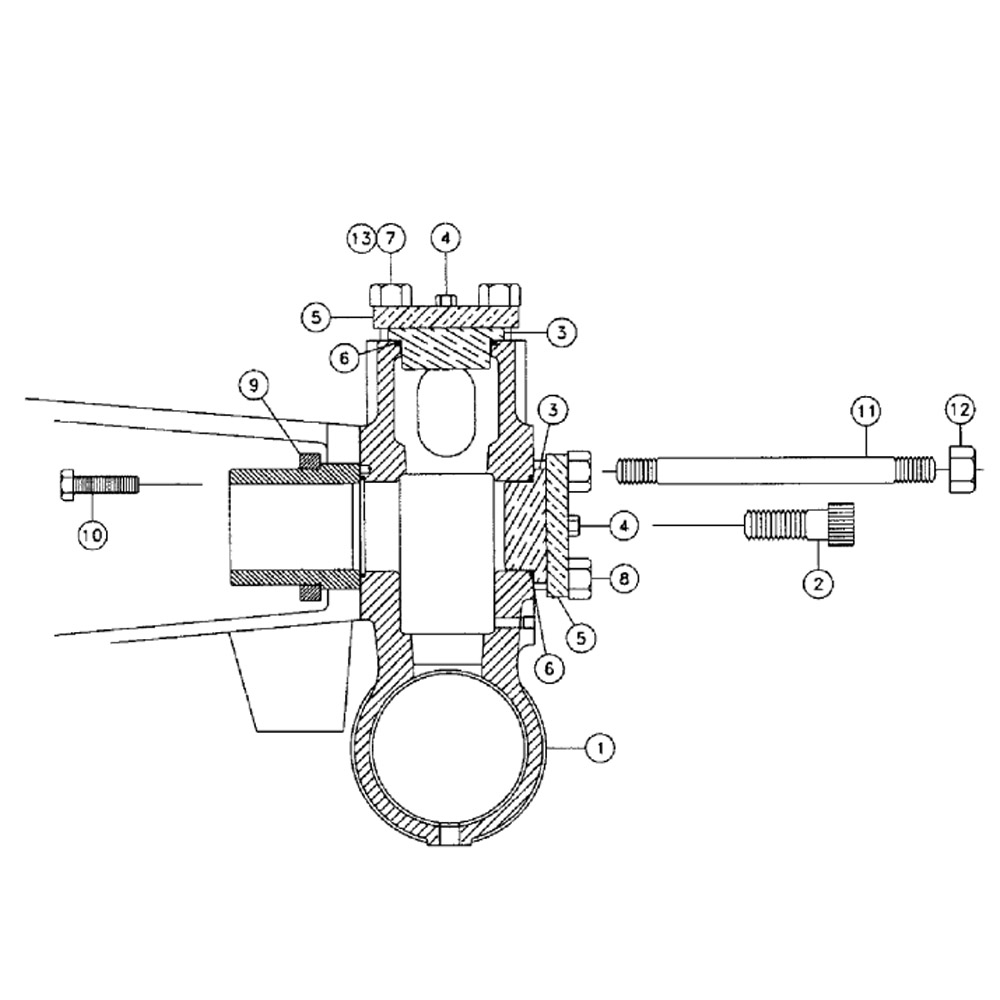

Water Pump Fluid End Components - 150 Gal. (SC115L) for D80x100

REF. NO.	PART NO.	DESCRIPTION	QTY.
1	244643019	FLUID END-DUCTILE IRON	1
2	224408107	SOCKET HD CAPSCREW 7/8X2 3/4	2
3	244643021	VALVE COVER & CYL. HEAD PLUG	10
4	239383023	CAP SCREW-1/2 NC-1 1/4 HEX HD	10
5	239383019	VALVE COVER RETAINER PLATE	2
6	239383021	O-RING	10
7	244643023	SCREW-3/4-10 X 2 1/2 HEX HD C	4
8	244643025	SCREW-3/4-10 X 9 1/2 HEX HD C	10
9	239383075	RETAINER PLATE	1
10	277781035	HEX HD CAP SCREW 5/8X2 1/4	2
11	277781037	STUD-POWER FRAME TO FLUID END	2
12	277781039	NUT-3/4″ HEAVY HEX	4
13	277781041	HEX HD CAP SCREW 3/4X4	8
