Water Pump Piston – 4″ Components – 200 Gal. (SC170) for 80×100/100×120/130х150
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout

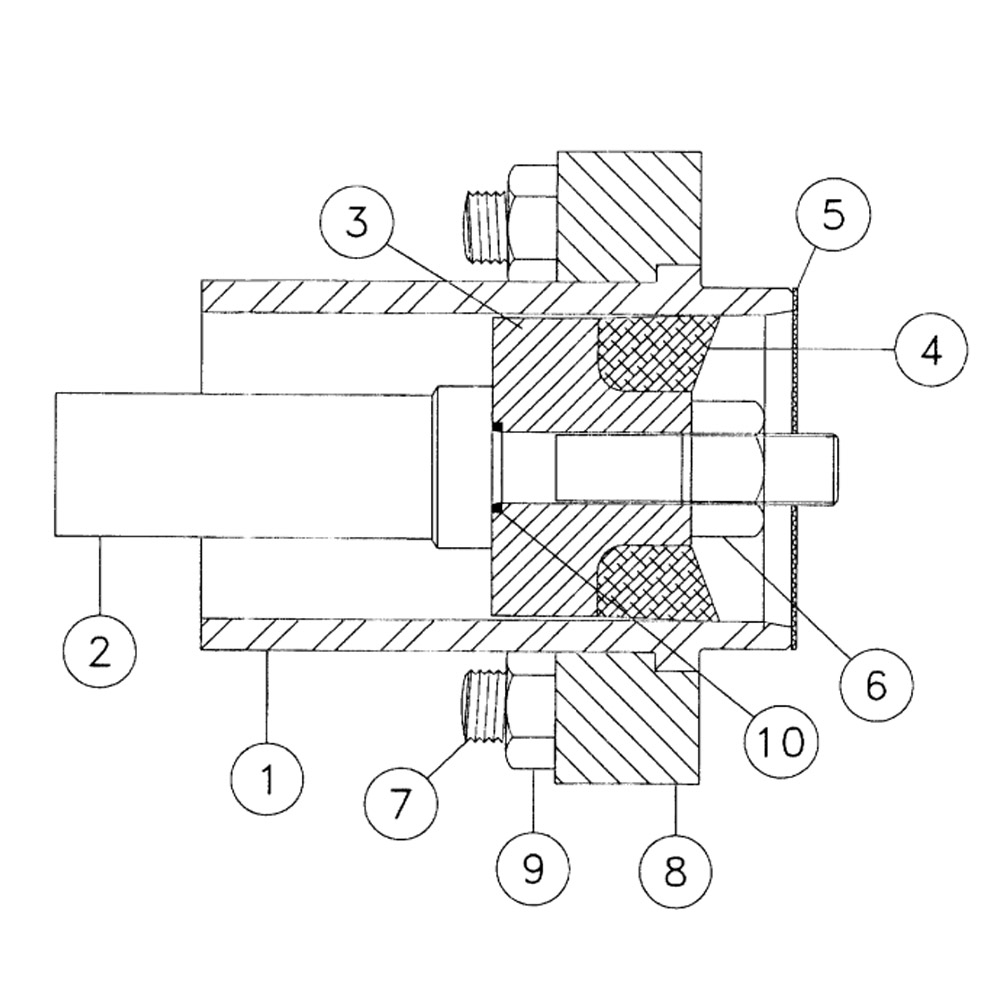

| REF. NO. | PART NO. | DESCRIPTION | QTY. | REMARKS |
|---|---|---|---|---|
| 1 | 277780081 | LINER-4″ CHROME OXIDE PISTON | 3 | |
| 2 | 277780082 | ROD-PISTON | 3 | |
| 3 | 277780083 | *PISTON ASSY. (BLACK) | 3 | Inc. Ref. 4 & 6 |
| 4 | NSS | PISTON RUBBER | 3 | |
| 5 | 277780084 | GASKET LINER | 3 | |
| 6 | 277780085 | NUT-SL PISTON ROD | 3 | |
| 7 | 277780086 | STUD | 16 | |
| 8 | 277780088 | LINER-PISTON FLANGE | 4 | |
| 9 | 277780087 | NUT-1″ NC | 16 | |
| 10 | NSS | *O-RING | 3 |
