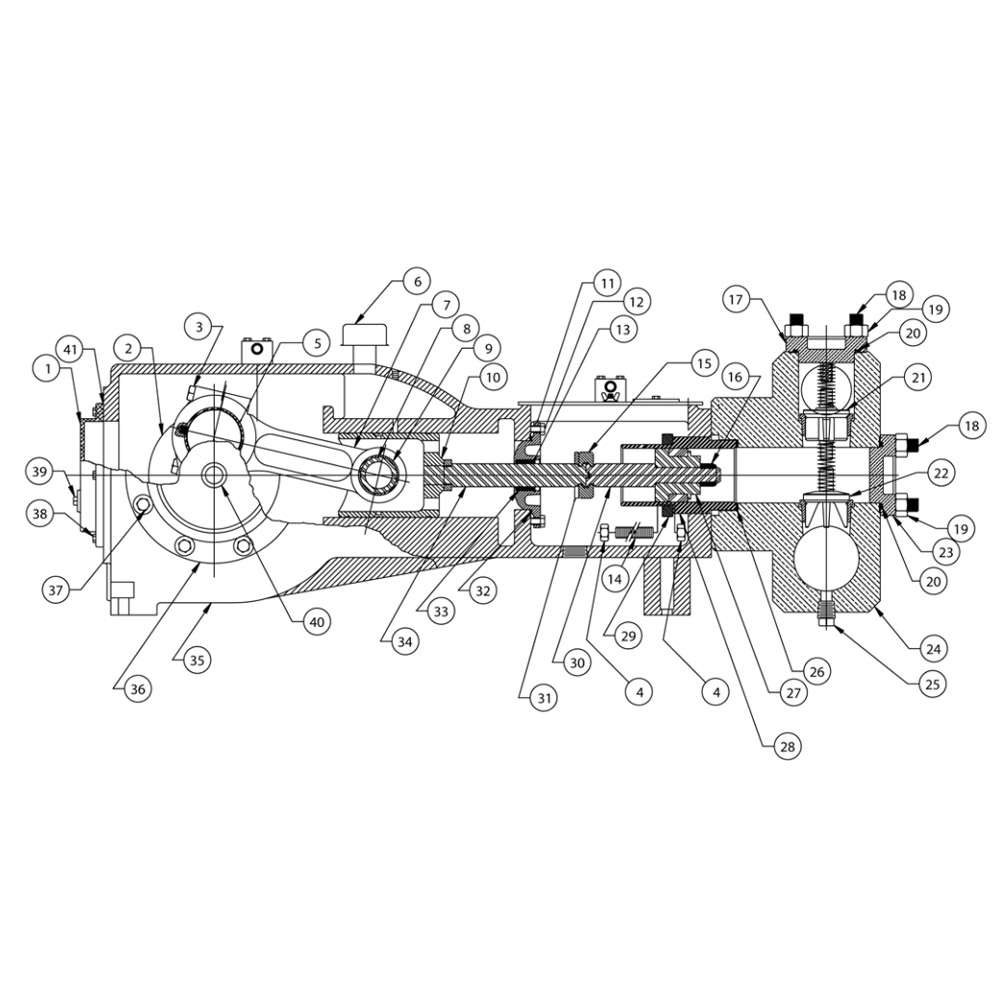

Water Pump Power/Fluid Ends Components - 200 Gal. (KA-5500PT) for 80x100/100x120/130х150

REF. NO.	PART NO.	DESCRIPTION	QTY.	REMARKS
1	287030002	PAN COVER	1
2	287030003	CRANKSHAFT-21T SPLINE	1
3	287030038	BEARING-MAIN	2
4	287030051	SEAL-OIL	1
5	287030039	GASKET	1
6	287030052	SHIM KIT	1	VARIOUS THICKNESS
7	287030004	BOLT	6
8	287030079	NUT-5/8-11 SS	24
9	287030006	BUSHING-CONN. ROD	3	STD
10	287030007	CAP-OIL FILL/BREATHER	1
11	287030008	ROD-CONNECTING	3	INSERTED
12	287030009	PIN-WRIST	3
13	287030010	BUSHING-WRIST PIN	3
14	287030011	CROSSHEAD	3
15	287030012	GLAND-PONY ROD SEAL	3
16	287030013	BOLT-7/16-14 X 1 1/4 SS	6
17	287030014	SNAP RING	3
18	287030077	STUD-FLUID END/LINER	10
19	287030078	STUD-FLUID END/LINER	2	LINE UP
20	287030016	CLAMP	3
21	287030017	LOCK NUT	3
22	287030018	CAP-TOP COVER	3
23	287030019	STUD	24
24	287030020	NUT	19
25	287030021	O-RING	6
26	287030022	VALVE-DISCHARGE	3	COMPLETE
27	287030023	VALVE-SUCTION	3	COMPLETE
28	287030024	COVER-END CAP	3
29	287030025	VESSEL-FLUID END	1
30	287030026	PLUG-BRASS DRAIN	2
31	287030027	GASKET-LINER	1
32	287030028	PISTON 3 1/2″	3
33	287030029	LINER 3 1/2″ CERAMIC	3
34	287030030	RETAINER-LINER	3
35	287030031	ROD-PISTON EXTENSION	3
36	287030032	SPLASH GUARD-PONY ROD	3
37	287030083	GASKET-PONY ROD GLAND	3
38	287030034	SEAL SET	1	INC. FOUR SEALS
39	287030035	ROD-PONY PISTON	1
40	287030036	CASE-PUMP	3
41	287030037	HOUSING-BEARING	1
42	235721001	BOLT-1/2-13 X 1 1/2 GR 8 ZINC PLT	1
43	238209001	BOLT-5/16-18 X 1 GR 8 HEX ZINC YC	8
44	287030040	PLUG-BRASS OIL LEVEL	19
45	287030053	SEAL-OIL	1
46	287030015	GASKET-PAN COVER	1
