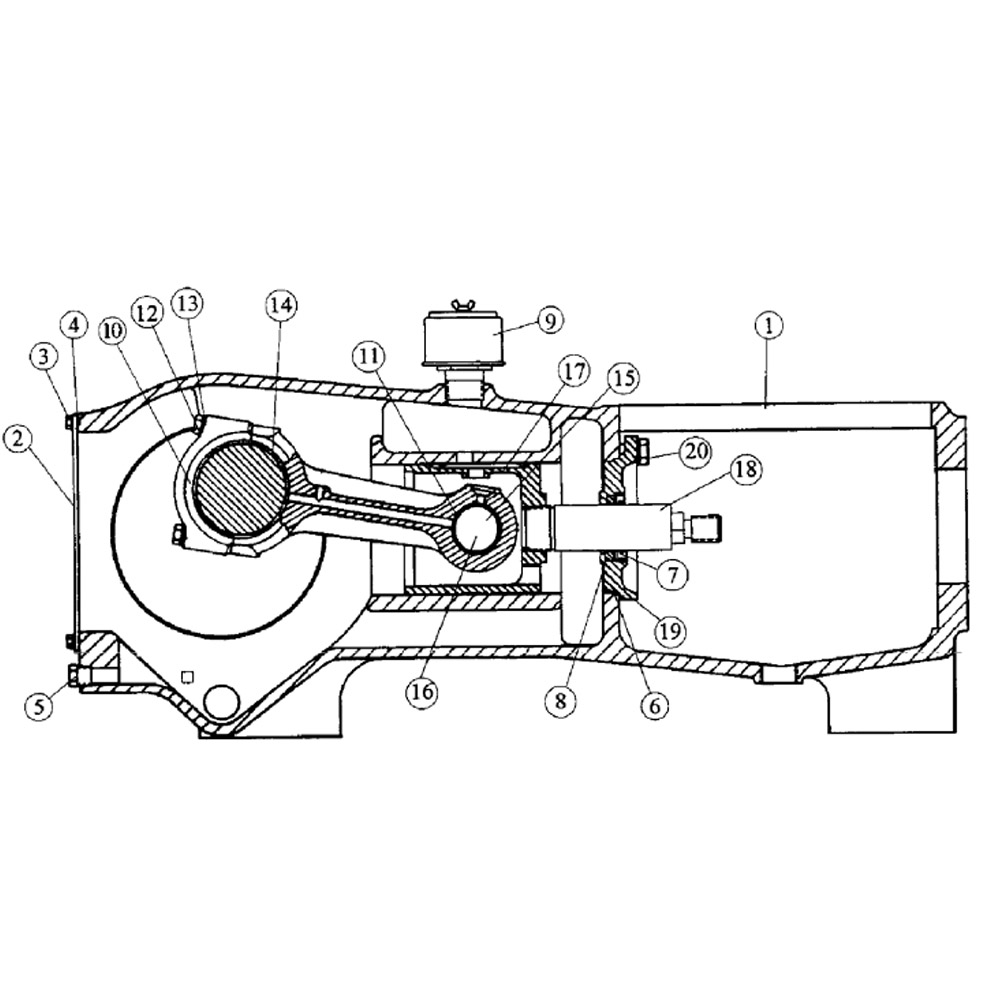

Water Pump Power Frame Components – 200 Gal. (SC170) for 80×100/100×120/130х150
- Quality assurance
- Fast shipping from DE stock
- Secure Payments
Guaranteed safe checkout
| REF. NO. | PART NO. | DESCRIPTION | QTY. | REMARKS |
|---|---|---|---|---|
| Revision Date | March, 2005 | Corrected length of callout 16 | ||
| 1 | 277780004 | FRAME-POWER | 1 | |
| 2 | 277780005 | COVER-CRANKCASE | 1 | |
| 3 | 277780006 | HEX HD CAP SCREW-3/8X3/4 | 14 | |
| 4 | 277780007 | GASKET-CRANKCASE COVER | 1 | |
| 5 | 277780008 | PLUG-1/2″ HEX HD | 1 | |
| 6 | 277780009 | O-RING-NITRILE RUBBER | 3 | |
| 7 | 277780010 | SEAL-OIL | 3 | |
| 8 | 277780011 | POLYPAK RING-2″ ID X 2 3/4″ OD | 3 | |
| 9 | 277780015 | BREATHER-CRANKCASE | 1 | |
| 10 | 277780013 | CONNECTING ROD ASSY. | 3 | Inc. Ref. 10-13 |
| 11 | 277780014 | BUSHING-WRIST PIN | 1 | |
| 12 | 277780012 | BOLT-CONNECTING ROD | 6 | |
| 13 | 277780016 | WASHER-1/2″ MEDIUM SPRING LOCK | 6 | |
| 14 | 277780017 | BEARING HALF-CRANKPIN | 4 | w/ Oil GRV |
| 15 | 277780018 | PIN-WRIST | 3 | |
| 16 | 277780019 | SET SCR-3/8 NC X 3/4 NYLCK SOC HD | 1 | NOT SHOWN |
| 17 | 277780020 | CROSSHEAD | 3 | |
| 18 | 277780021 | ROD-EXTENSION | 3 | |
| 19 | 277780022 | WIPERBOX | 1 | |
| 20 | 277780023 | HEX HD CAP SCREW-5/8 X 1 1/2″ | 6 |
