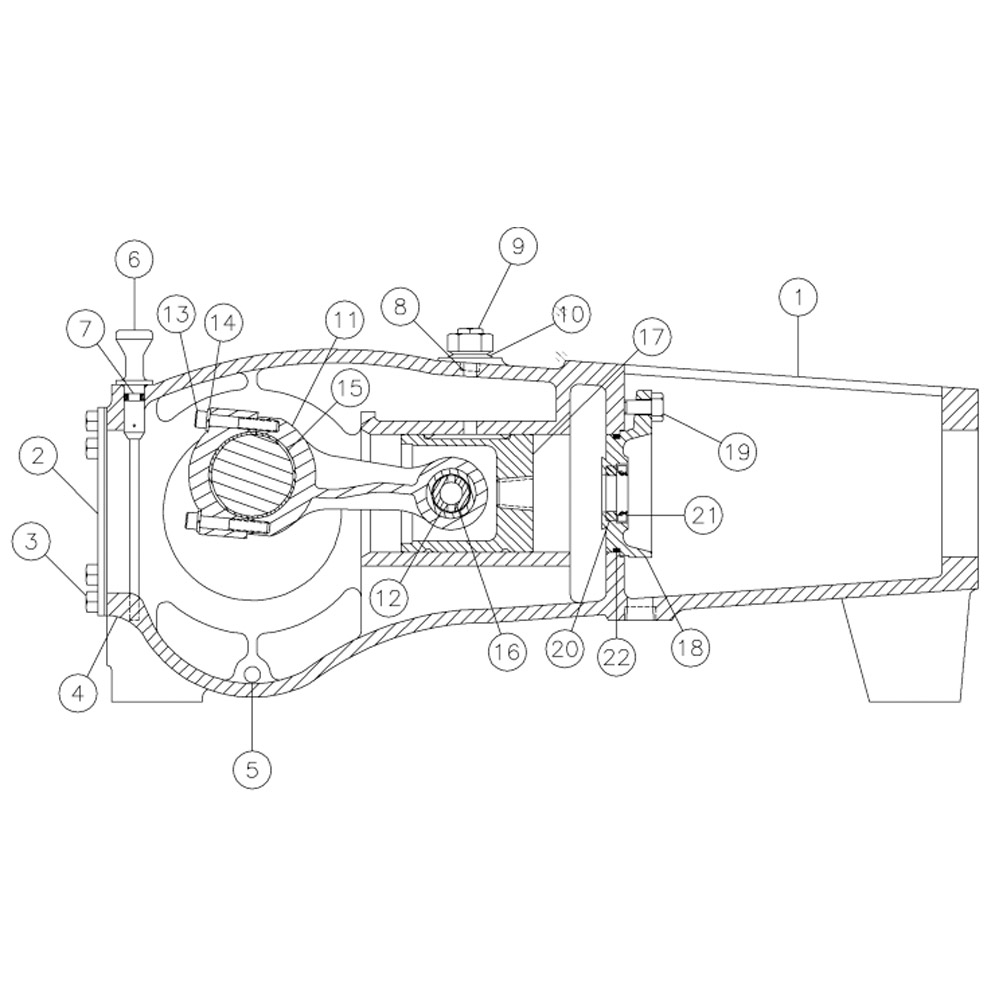

Water Pump-50 GPM APLEX Components-Crankshaft for Vermeer 36х50

REF. NO.	PART NO.	DESCRIPTION
1	296269559	APLEX 50 GPM MUD PUMP W/CHARLYN HYD/DR M
2	296280862	PUMP SUPPORT ASY
3	296265854	WATER PRESSURE DUMBELL PISTON MAN ASSY
4	707003	1/2″ NPT HEX NIPPLE
5	297235001	COUPLER-1/2″NPT QUICK(FEMALE)
6	234679001	CAP-DUST
7	59423001	90-4MORBA-4MJ
8	258472001	FITTING-P MX34 PX2 XCX M NPT TEE
9	221506001	NIPPLE-REDUCING 3X2 MPT (POLY)
10	275759001	COUPLING-3″MTPT X3″ FPT (POLY)
11	215429001	CAP-2″ CAM LOCK
12	244069001	CABLE-3/32″X12 XCX NYLON COATED
13	1838001	CONNECTOR-WIRE (ETC)
14	269554001	SWITCH – 10 PSI NO/NC
15	275770001	VALVE – 3/4 MXF BALL W/THNDL
16	53856001	3/4M PIPE-112M JIC SK
17	732015	1 1/2″ PIPE PLUG BLACK STEEL
18	296303781	WATER VALVE SUPPORT
19	276003001	VALVE – 1″ 1500 PSI BRASS BALL
20	609904001	1″M NPT X 16M JIC 45 DEG ELBOW
21	235714001	WASHER – FLATSTRL – .31 – .34 X .69 – 06-YZ A325
22	238209001	BOLT-5/16-18X1 GR8 HEX ZINC YC
23	240333001	NUT-5/16-18 GR8 TL ZINC PLTD
24	485025	WASHER-1/2 FLATHARDENED-YZ
25	240334001	SCREW-HCS-.50 -13X1.75-GR8- YZ
26	75493001	FITTING – TEST – 4MORB – 16MTP
27	250512001	NUT-1/2 NC GR8 TOP LOCK Y/ZINC
28	235713001	WASHER – FLATSTRL – .38 – .41 X .81 – 06-YA A325
29	235725001	NUT – HEX – .38 – 16 – GR8 – YZ
30	120885001	FITTING-1 1/4 NPT PIPE PLUG
31	236015001	HEX BUSHING-40MPT X 32FPT
32	296289008	FITTING – STR – 24MNPT – 32FPT
33	707007	NIPPLE-3/4 HEX
34	296265568	FITTING – ST – 32MNPT – SQ – GALV
35	735001	3/4″ COUNTERSUNK PIPE PLUG
36	730017	1″ X 3/4″ HEX BUSHING STEEL
