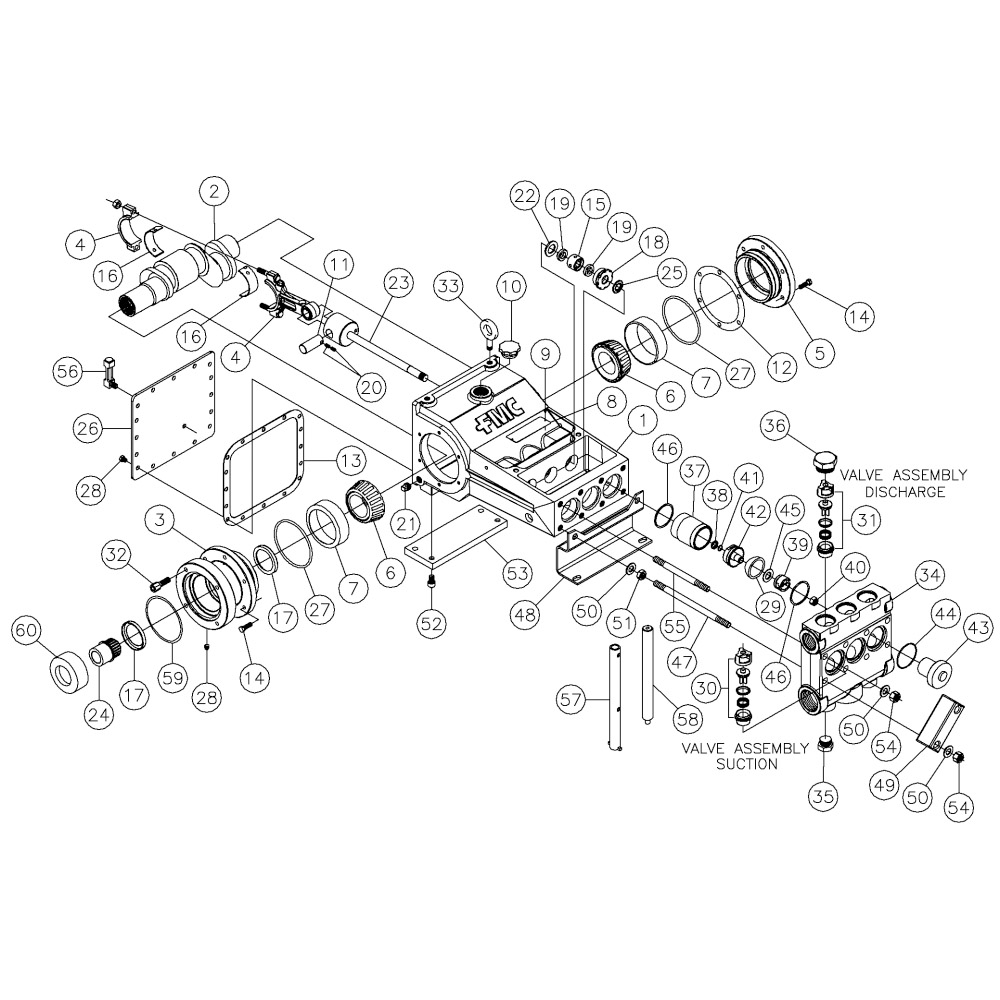

Water Pump Components-50 GPM FMC for Vermeer 33х44/36х50

REF. NO.	PART NO.	DESCRIPTION
1	278882002	PUMP CASE
2	278882003	CRANK SHAFT
3	278882004	BEARING HOUSING
4	278882005	CONNECTING ROD
5	278882006	BEARING HOUSING
6	278882008	BEARING CONE
7	278882009	BEARING CUP
8		NAME PLATE
9	248507009	SCREW – #4 X 3/16″ LG SELF – TAPPING
10	276521025	OIL CAP
11	278882010	WRIST PIN
12	278882012	SHIM
13	278882013	GASKET COVER
14	228460003	CAPSCREW-3/8-16X1 1/4 HEX HD
15	278882015	SLEEVE
16	278882016	SHELL BEARING (PAIR)
17	278882017	SEAL
18	278882018	ROD SEAL RETAINER
19	904540035	OIL SEAL
20	278882019	SET SCREW
21	276521047	PLUG -1/2″ PIPE, MAG
22	278882020	WASHER PACKING
23	278882021	CROSS HEAD ASSEMBLY
24	278882022	CROSS OVER SUB
25	904540049	WASHER-BARRIER
26	278882037	BACK COVER
27	278882007	O-RING – UNIFORM #160
28	278882039	CAPSCREW – 3/8-16 X 3/4 LG HEX HEAD
29	278882024	PISTON CUP
30	225946033	VALVE ASSEMBLY-SUCTION
31	225946025	VALVE ASSEMBLY-DISCHARGE
32	278882027	SOCKET HEAD CAP SCREW
33	278882036	EYE BOLT – 1/2 X 1-1/2
34	240141005	FLUID CYLINDER
35	225946017	PLUG-1 3/16-12 UN-2A
36	225946011	PLUG-1 7/8-12 UN-2A
37	278882028	PISTON CYLINDER
38	240141009	SEAL HOLDER
39	240141011	PISTON NUT
40	228460023	HEX NUT-SPECIAL BRASS
41	228460029	O-RING
42	278882029	PISTON HOLDER
43	228460027	CYLINDER COVER
44	225946021	O-RING
45	240141015	PISTON WASHER
46	904540105	GASKET
47	278882030	STUD
48	278882031	FRONT FOOT
49	904540059	CLAMP-COVER
50	904540061	WASHER-5/8
51	278882033	JAM NUT
52	278882034	SOCKET HEAD CAP SCREW
53	278882035	REAR FOOT
54	904540063	NUT- 5/8-11
55	904540057	STUD-SHORT
56	278882032	LIQUID LEVEL GAUGE
57	240141019	TOOL – PISTON CUP REMOVAL
58	240141017	TOOL – VALVE INSTALLATION
59	278882025	O-RING
60	278882026	BEARING SLEEVE
	278951001	PUMP – WATER
